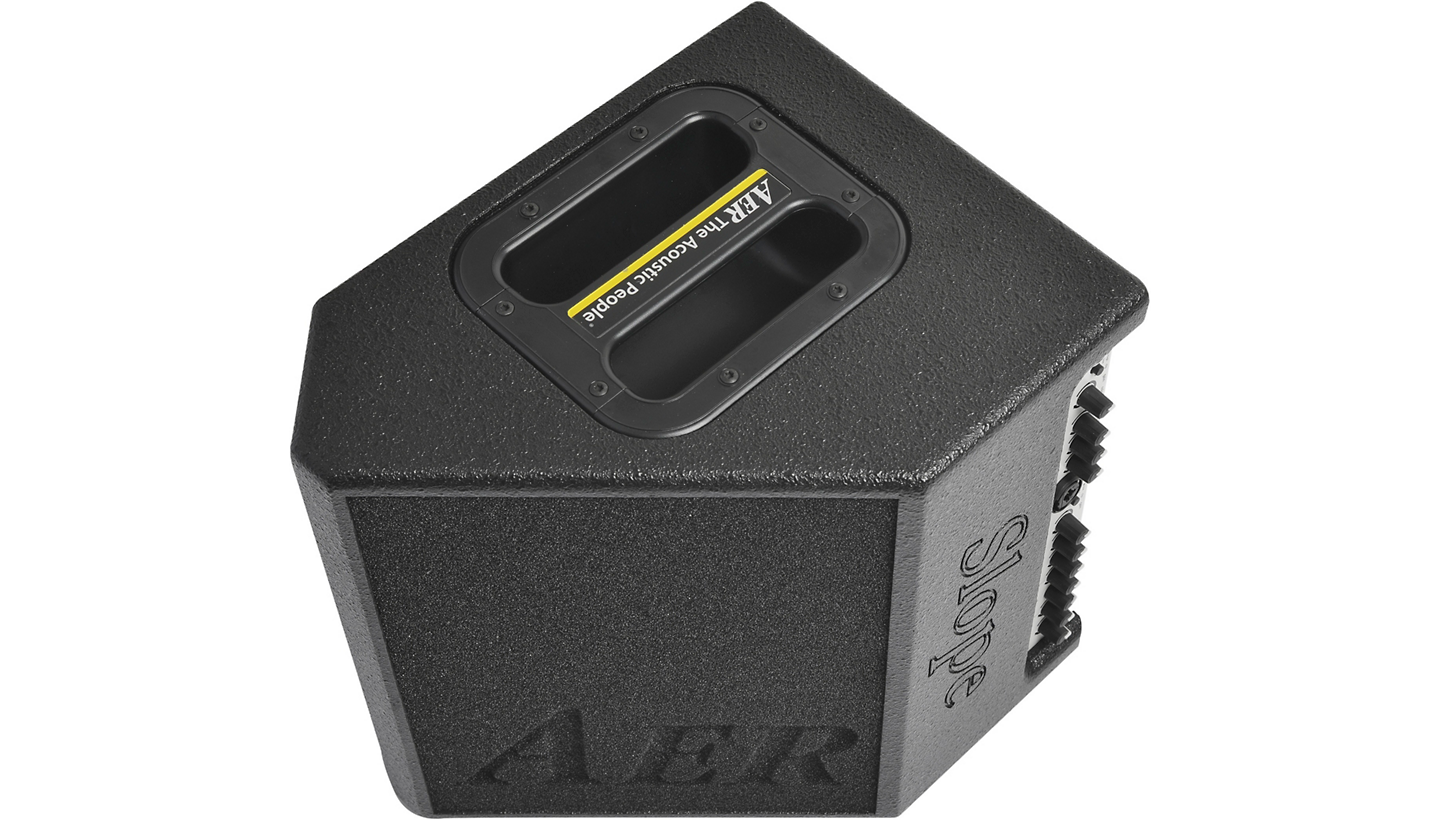

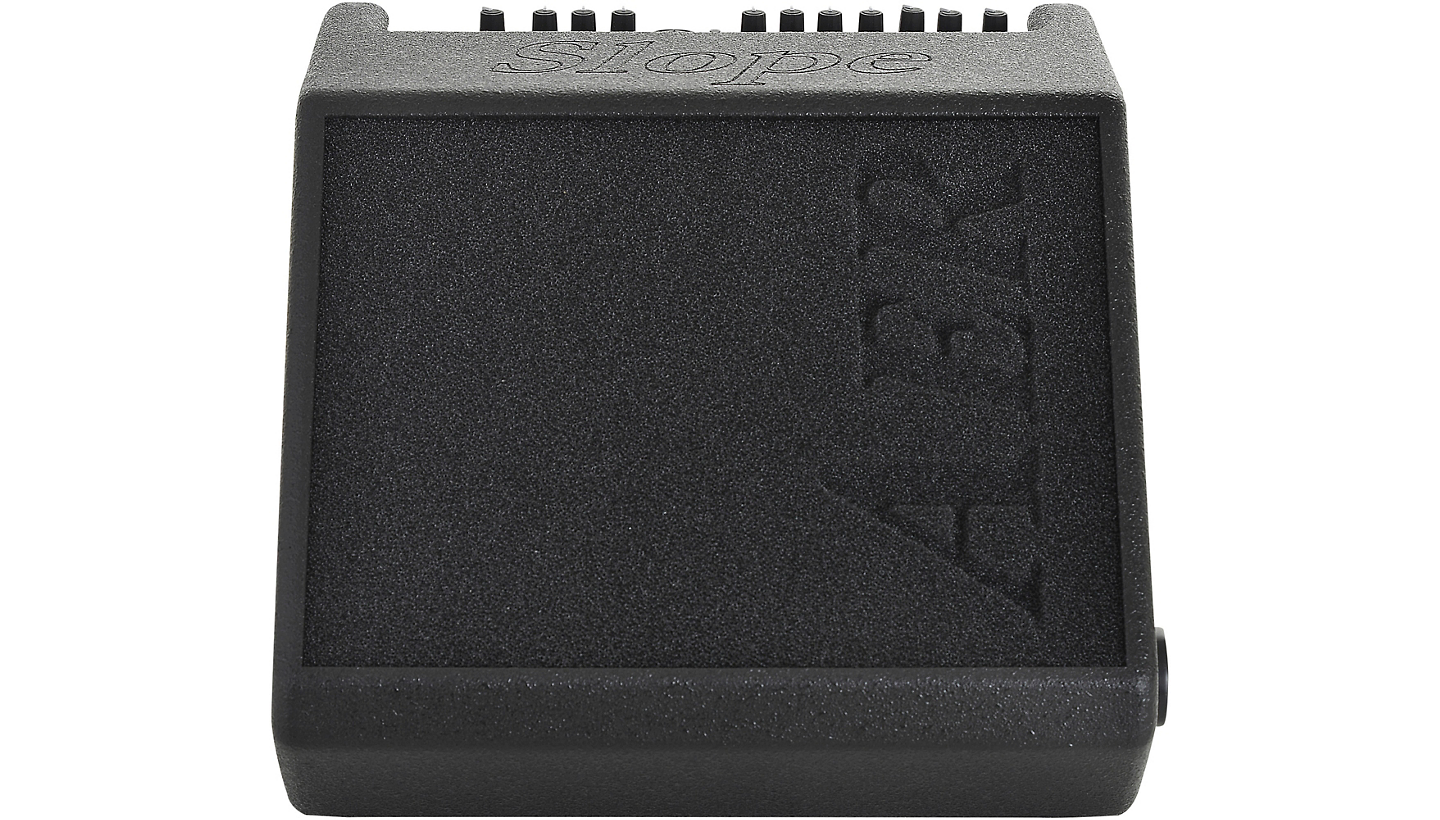

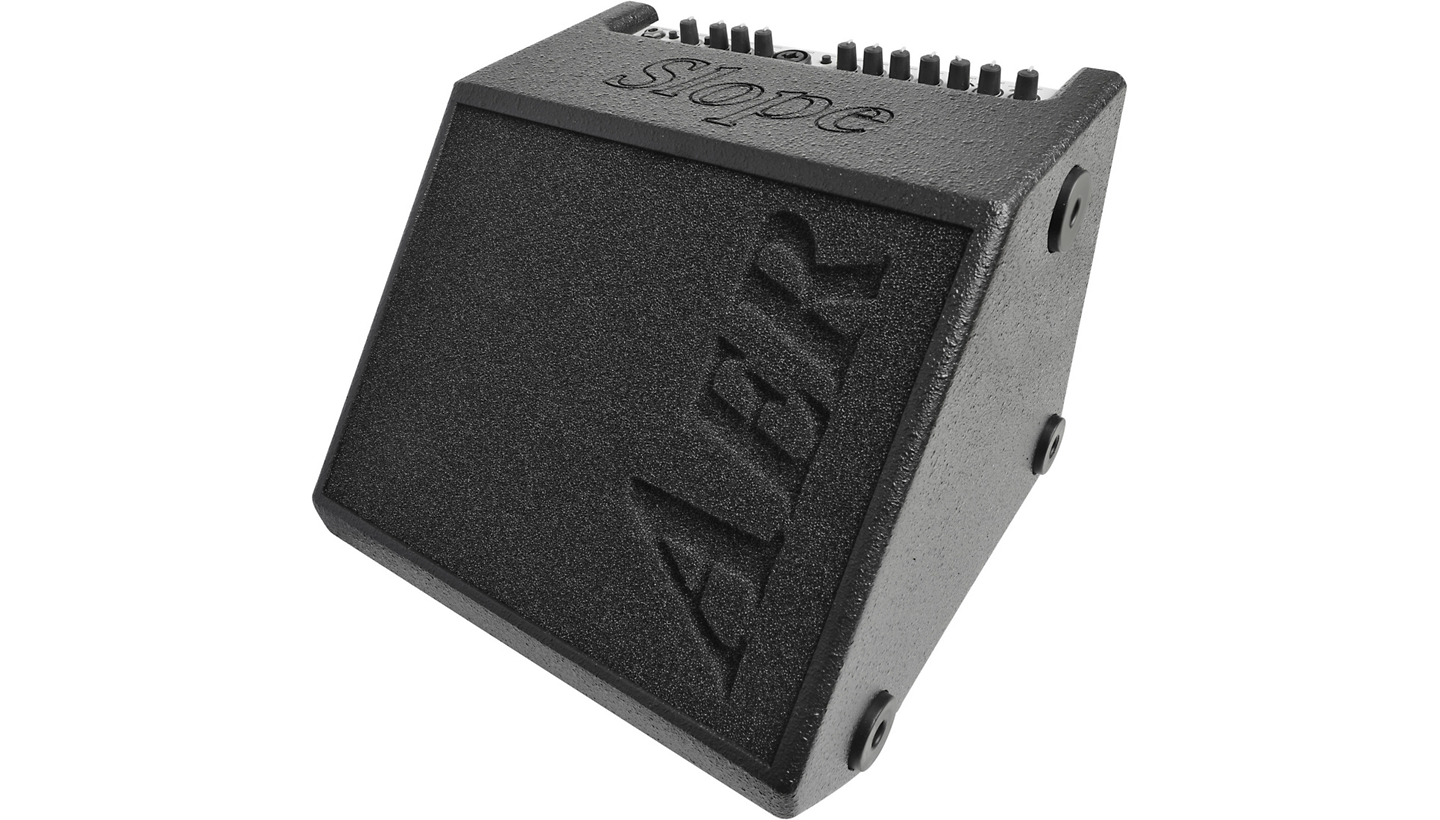

AER Compact 60/4 Slope Acoustic Amplifier

AER Compact 60 Slope Manual

Power Rating: 60 watts
Frequency response: 60Hz-18kHz
Speaker: 8" [200mm] twin-cone system
Two channels
Phantom power: 24v [channel 2]
Dimensions:
Height: 10.09"
Width: 13.09"
Depth: 5.39" / 12.84"
Weight: 15.8 lbs

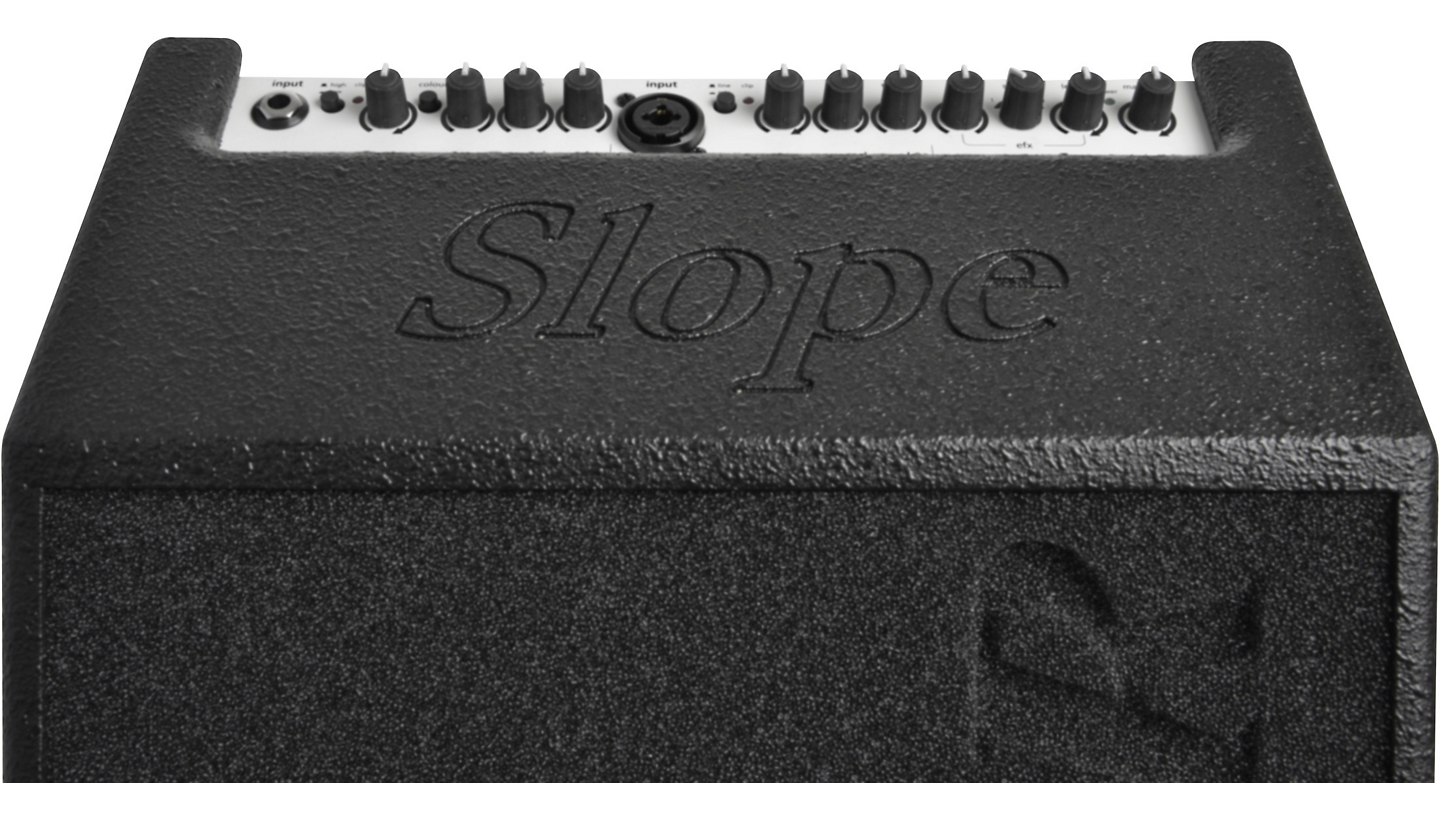

    Input for a 1/4" jack plug
    High/Low switch to adjust input sensitivity High impedance  instruments with a piezoelectric pick-up, Low for instruments with active pre-amplifiers and magnetic sound pick-ups
    Clipping indicator
    Gain input level control
    Color mid-range contour filter
    Bass tone control for low frequencies
    Middle tone control for mid-range frequencies
    Treble tone control for high frequencies
    Input XLR combination with an input for a 1/4" jack plug and XLR male socket
    Line/Mic switch adjusts input sensitivity
    Line sources with line level, instruments with active preamplifiers and magnetic
    sound pick-ups, Mic: symmetrical microphone input with 30V phantom source
    Clipping indicator
    Gain input level control
    Bass tone control for low frequencies
    Treble tone control for high frequencies
    Eff. Pan panorama control is for distributing the effects between the channels
    Select push button to choose between four effects, indicated by the LEDs between return and master (pos.1 warm hall, pos. 2 bright hall reverb, pos. 3 chorus with reverb, pos. 4 flanger)
    Return level control for internal effects
    Power indicator light
    Master level control
    Headphone output
    Tuner output
    Line out
    DI-out XLR output
    Send output for an external device
    Return input for effects or CD player
    F/S connection for a double foot switch
    Power combined mains switch
