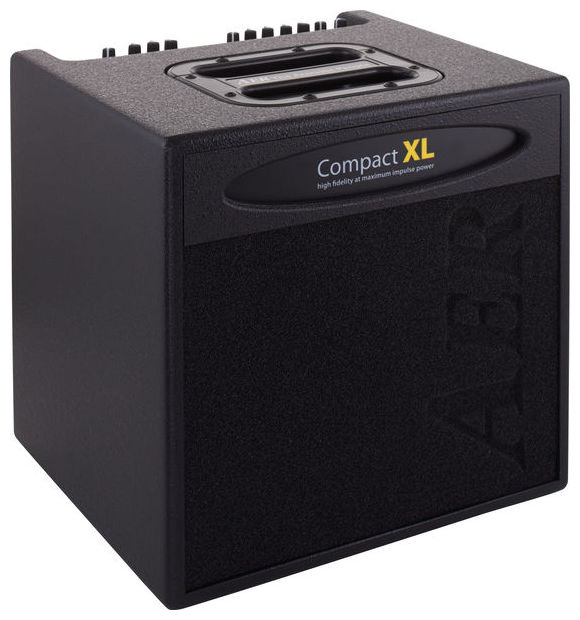

AER Compact XL Acoustic Amplifier

AER Compact XL Manual

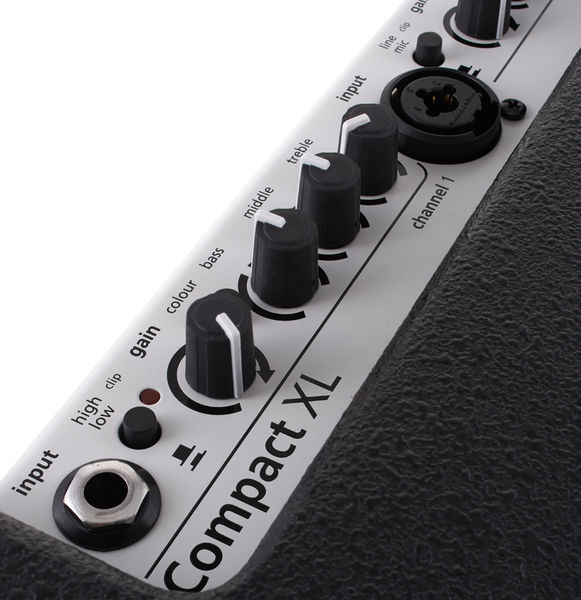

Inputs

channel 1

6.3 mm (1/4”) input jack socket as high impedance
line input stage with pad (high/low
attenuation) and switchable 9 V phantom
power, gain control.

channel 2

combined XLR/6.3 mm (1/4”) input jack socket
as high-quality line- or balanced microphone
input stage 48 V phantom power,
gain control.

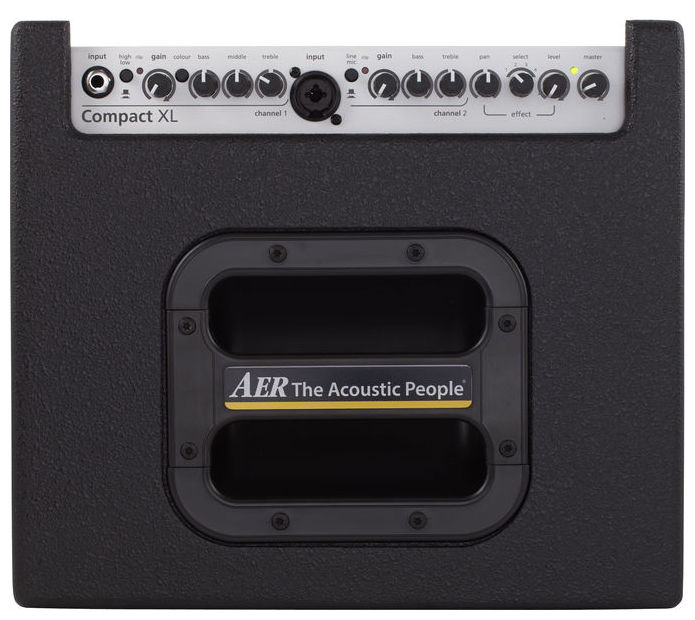

Tone Controls

equalizer three band tone controls for channel 1 and
two band tone controls for channel 2
colour ‘mid-cut-treble-boost’-filter
effect digital effect processor with 4 presets:
1 – 3= reverb and 4= delay.

Power

power amp 200 W / 8 ohms, dynamic control
analog
signal subsonic filter, low distortion
processing RMS limiter

Speaker System

2-way system, 8” (200 mm) polypropylen
low-midrange + 1” dome tweeter, lightweight
neodymium alloy magnets

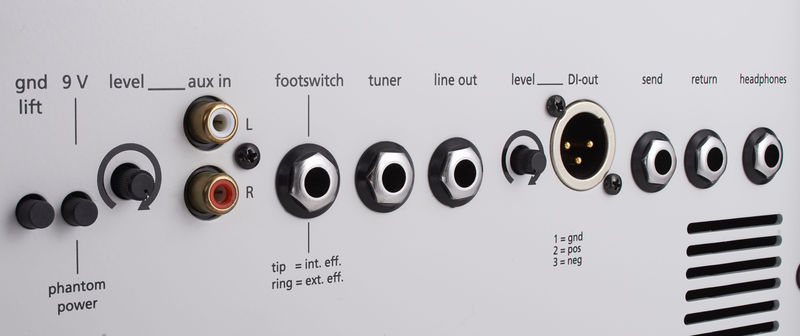

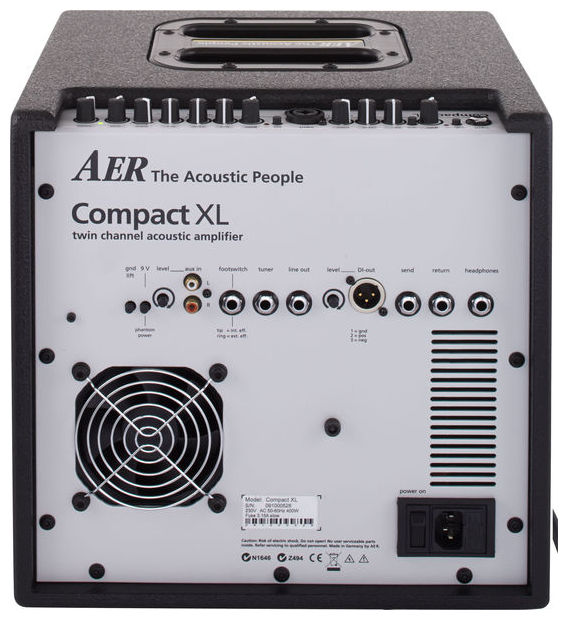

Features

ground lift, switchable 9 V phantom power,
adjust-able aux in, footswitch (effects on/
off), tuner, line out, adjustable DI-out, send/
return, headphones

Accessories

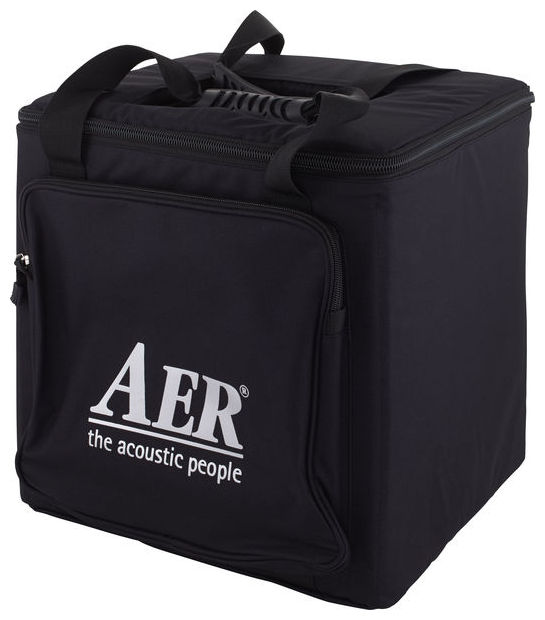

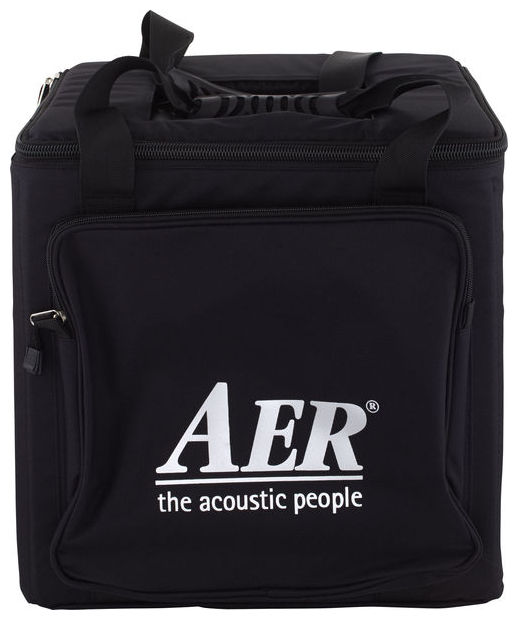

padded gigbag

Specifications

cabinet 15 mm (0.59”) finnish birch plywood
finish waterbased acrylic, black spatter finish
dimensions 325 mm x 330 mm x 285 mm
(12.80“ x 13.00“ x 11.22“), HxWxD
weight 10,60 kg (23.30 lbs)
