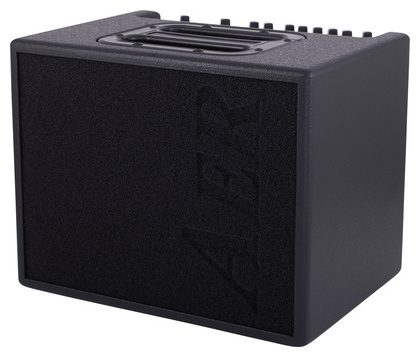

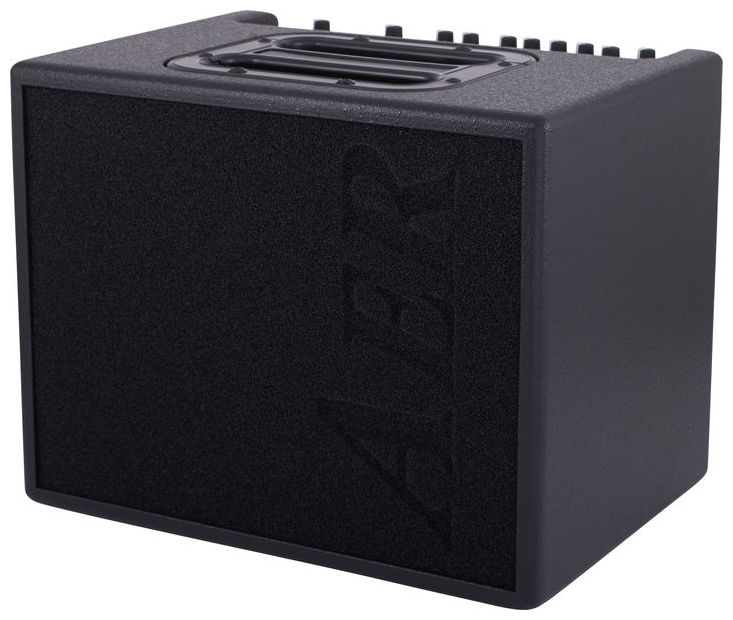

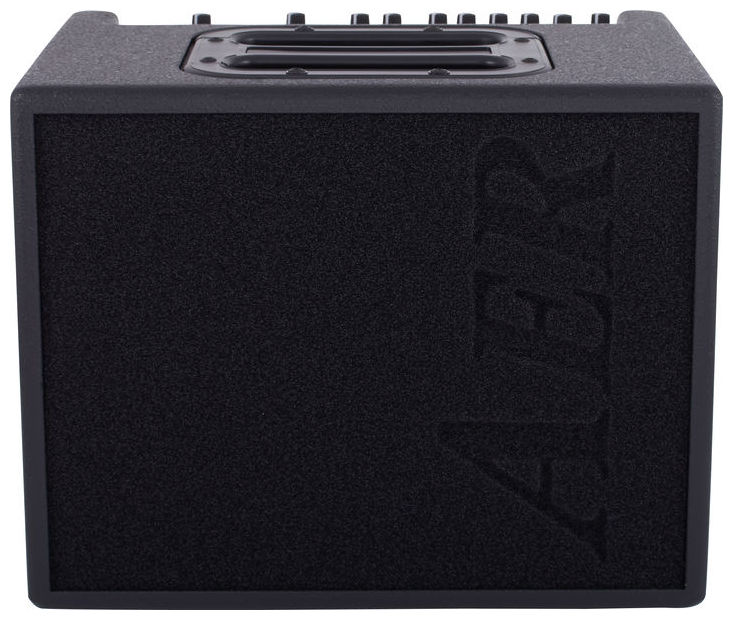

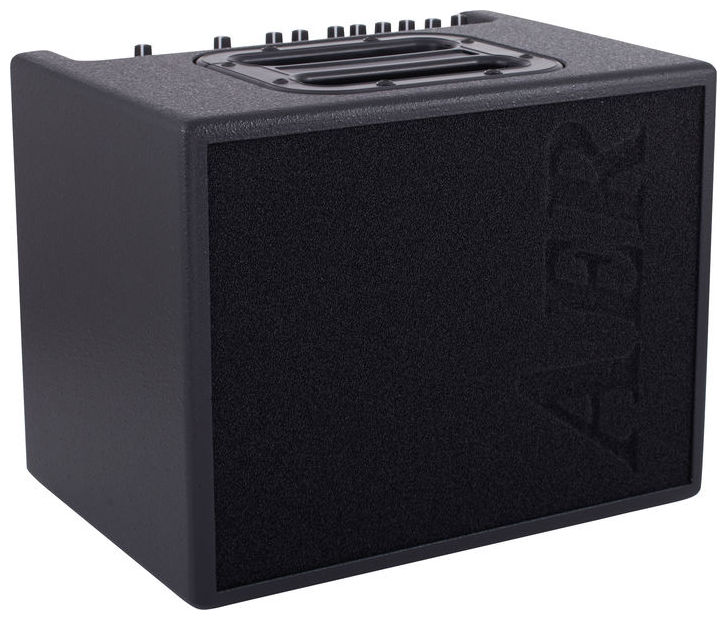

AER Compact Classic Pro Acoustic Amplifier

AER Compact Classic Pro Manual

Input 1

combined XLR/6.3 mm (1/4”) input jack socket to
access an input matrix with six different presets
for the pre-amp section (e.g. sources with microphone-,
line-, piezo- or piezo/electret-level),
gain control

Input 2

6.3 mm (1/4”) input jack socket as high impedance
line input or AER-piezo input stage, gain
control.

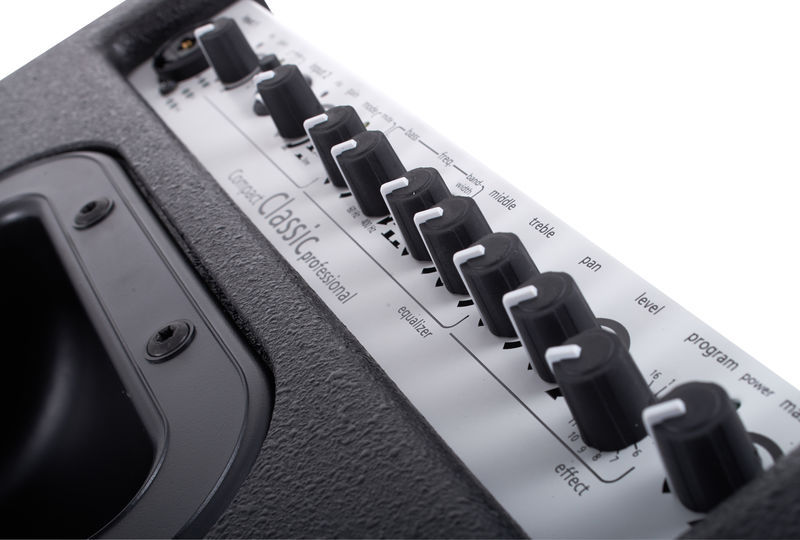

Tone Controls

equalizer three band tone controls with bass parametric
and bandwidth-switch (Q-factor).
effect 32 bit AER digital effect processor with 16
presets.

Power

power amp 60W / 4 ohms, dynamic control
analog signal subsonic filter, low distortion
processing RMS limiter

Speaker System

two-way speaker system, 8” (200 mm)
twin cone speaker plus tweeter.

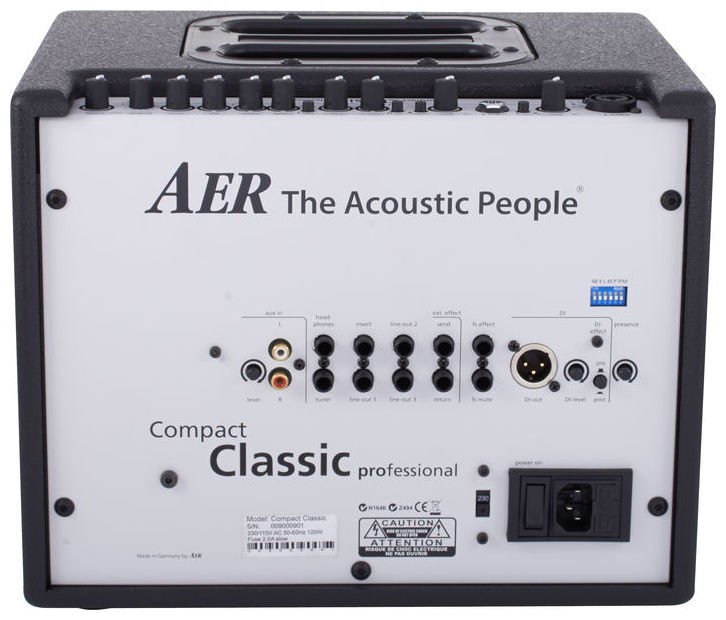

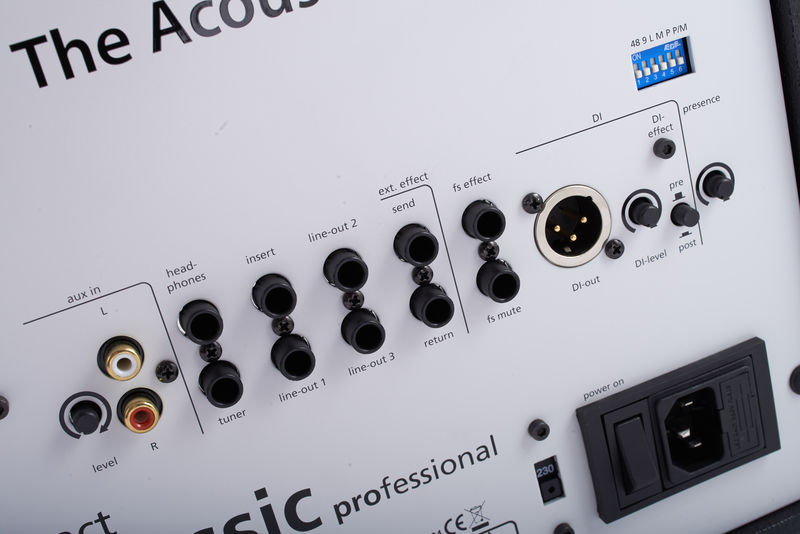

Features

adjustable aux in, headphones, tuner out, insert,
line out, left/right out, send/return, footswitch
(switch internal to external effect and mute
channels), adjustable DI-out (pre/post effect
switchable), presence control

Accessories

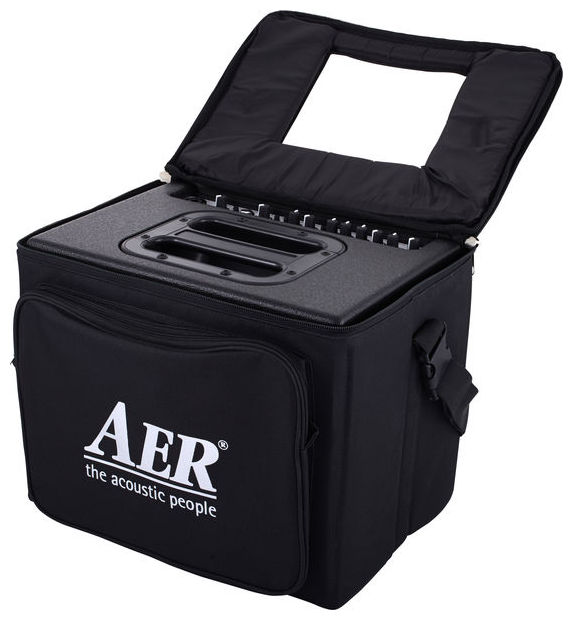

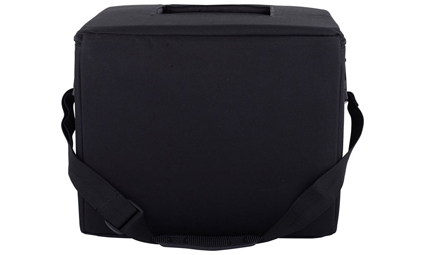

padded gigbag

Specifications

cabinet 15 mm (0.59”) finnish birch plywood
finish waterbased acrylic, black spatter finish
dimensions 265 mm x 330 mm x 235 mm
(10.40“ x 13.00“ x 9.25“), HxWxD
weight 7,8 kg (17.20 lbs)

Can be combined with
AS 281, AS Q8 AER Compact Classic Pro Manual
