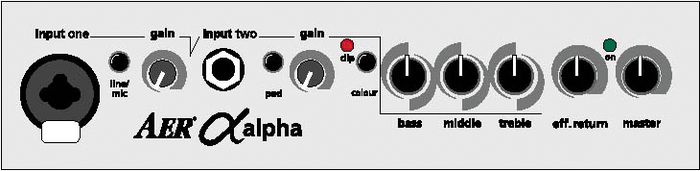

input one:
combined
XLR/6.3 mm (1/4) input jack
socket as
high-quality line- or balanced
microphone input
stage 24 V phantom
power, gain
control.
input two: 6.3 mm
(1/4) input jack socket as high
impedance line
input stage with pad (high/
low attenuation) and
gain control.
Tone
Controls
equalizer: three band
tone controls
colour
mid-cut-treble-boost-filter
effect digital
reverb
Power
power amp: 40W
/ 4 ohms, dynamic control
analog signal
subsonic fi lter, low
distortion
processing RMS limiter
Speaker
System
8
(200 mm) twin cone speaker
Features
headphones,
line out, DI-out, external
effect loop via
send and return, footswitch
(internal/external
effect on/off)

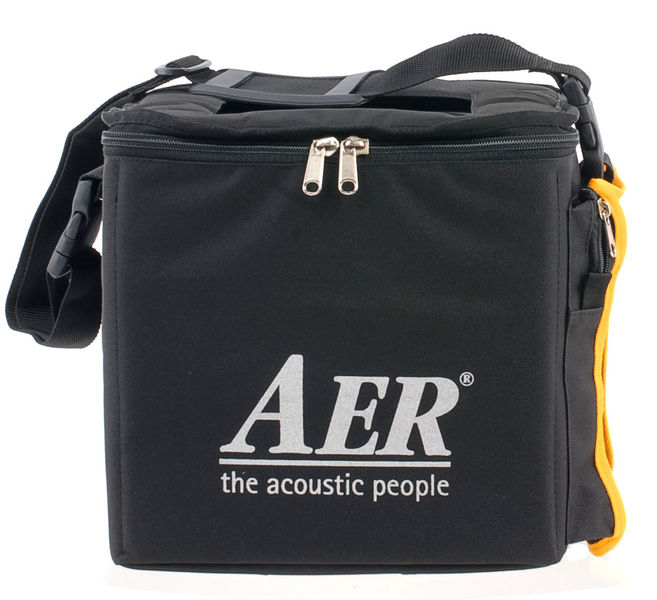

Accessories
padded
gigbag
Specifications
cabinet: 12 mm
(0.47) finnish
birch plywood
finish:
waterbased acrylic,
black spatter fi nish
dimensions: 260 mm x 265 mm
x 235 mm
(10.24 x
10.43 x 9.25), HxWxD
weight:
6,2 kg (13.67 lbs)
Can be combined with
AG 8, AS Q8
AER
Alpha
Manual
