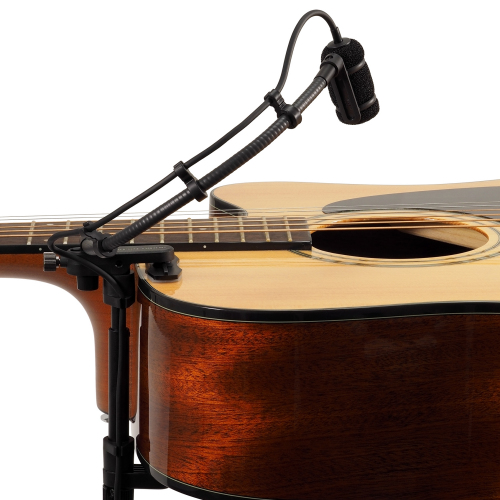

Designed for use with guitars, the ATM350GL UniMount® mounting system gives you the tools to perform with confidence. DThe system features the ATM350a cardioid condenser microphone, a high-SPL mic that provides a clear, well-balanced response from any instrument. When teamed with the included AT8491G guitar mount and strong, flexible AT8490L 9" gooseneck, the mic can be securely fastened to a guitar or other stringed instrument with a body depth of 90-135 mm. The microphone’s cardioid polar pattern isolates the instrument by reducing side and rear pickup, and the switchable 80 Hz high-pass filter on the in-line power module helps control undesired low-frequency noise.
The ATM350GL Cardioid Condenser Instrument Microphone w/ Guitar Mounting System includes: ATM350a microphone, AT8490L gooseneck, AT8491G guitar mount, AT8543 power module, AT8468 velcro mount and a hard carrying case.
Features:
--Low-profile mic design for minimum visibility
--Crisp, clear, well-balanced microphone response, even at high SPLs
--Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source

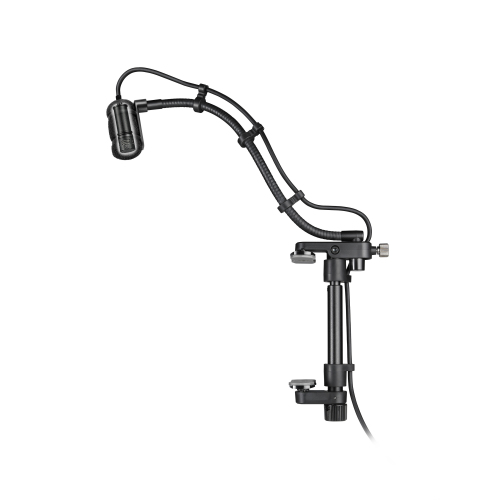

--UniMount guitar mount with thumbscrew-adjustable clamp attaches securely to guitars and other stringed instruments with body depths of 90-135 mm, and provides excellent shock resistance for the microphone
--Rugged UniMount 9 inch gooseneck rigidly holds its shape, keeping microphone accurately positioned even during aggressive play

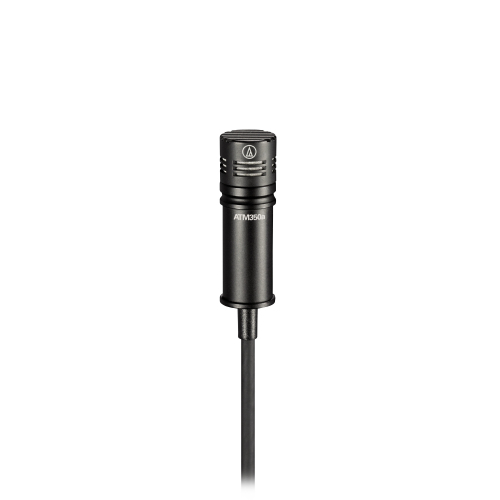

ELEMENT Fixed-charge back plate, permanently polarized condenser
POLAR PATTERN Cardioid
FREQUENCY RESPONSE 40 – 20,000 Hz
LOW FREQUENCY ROLL-OFF 80 Hz, 12 dB/octave
OPEN CIRCUIT SENSITIVITY –49 dB (3.5 mV) re 1V at 1 Pa
IMPEDANCE 200 ohms
MAXIMUM INPUT SOUND LEVEL 159 dB SPL, 1 kHz at 1% T.H.D.
DYNAMIC RANGE (typical) 130 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO 65 dB, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS 11– 52V DC, 3.5 mA typical
SWITCH Flat, roll-off
WEIGHT (MICROPHONE) 14.5 g (0.5 oz)
WEIGHT (POWER MODULE) 90 g (3.2 oz)
DIMENSIONS (MICROPHONE) 37.8 mm (1.49'') long,
12.2 mm (0.48'') maximum body diameter
DIMENSIONS (POWER MODULE) 92 mm (3.62") long,
18.9 mm (0.74") diameter
OUTPUT CONNECTOR (POWER MODULE) Integral 3-pin XLRM-type
CABLE 4.0 m (13.1') long (permanently attached to microphone), 3.2 mm (0.13") diameter, 2-conductor shielded cable with HIROSE HR10-type connector
OPTIONAL INTERCHANGEABLE ELEMENTS UE-H hypercardioid (100°), UE-O omnidirectional (360°)

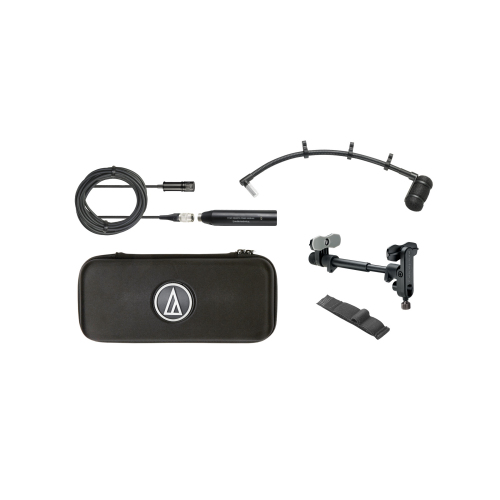

ACCESSORIES FURNISHED ATM350a cardioid condenser microphone; AT8543 power module; AT8491G UniMount® guitar mount; AT8490L UniMount® 9" gooseneck; AT8468 violin mount (hook-and-loop fastener); protective carrying case
AUDIO-TECHNICA CASE STYLE M36
Audio-Technica AT8418 Unimount Microphone Instrument Mount
The Audio-Technica AT8468 is a hook-and-loop fabric, touch-fastener mount for mounting lavalier microphones to violin and guitars.
