Audio-Technica
Audio Technica Cardioid Condenser Instrument Microphone with Piano Mounting System (9" Gooseneck)
Electronics > Audio > Audio Components > Microphones
audio-technica-atm350pl
ATM350PL
349.00
DjangoBooks.com
https://www.djangobooks.com/Item/audio-technica-atm350pl

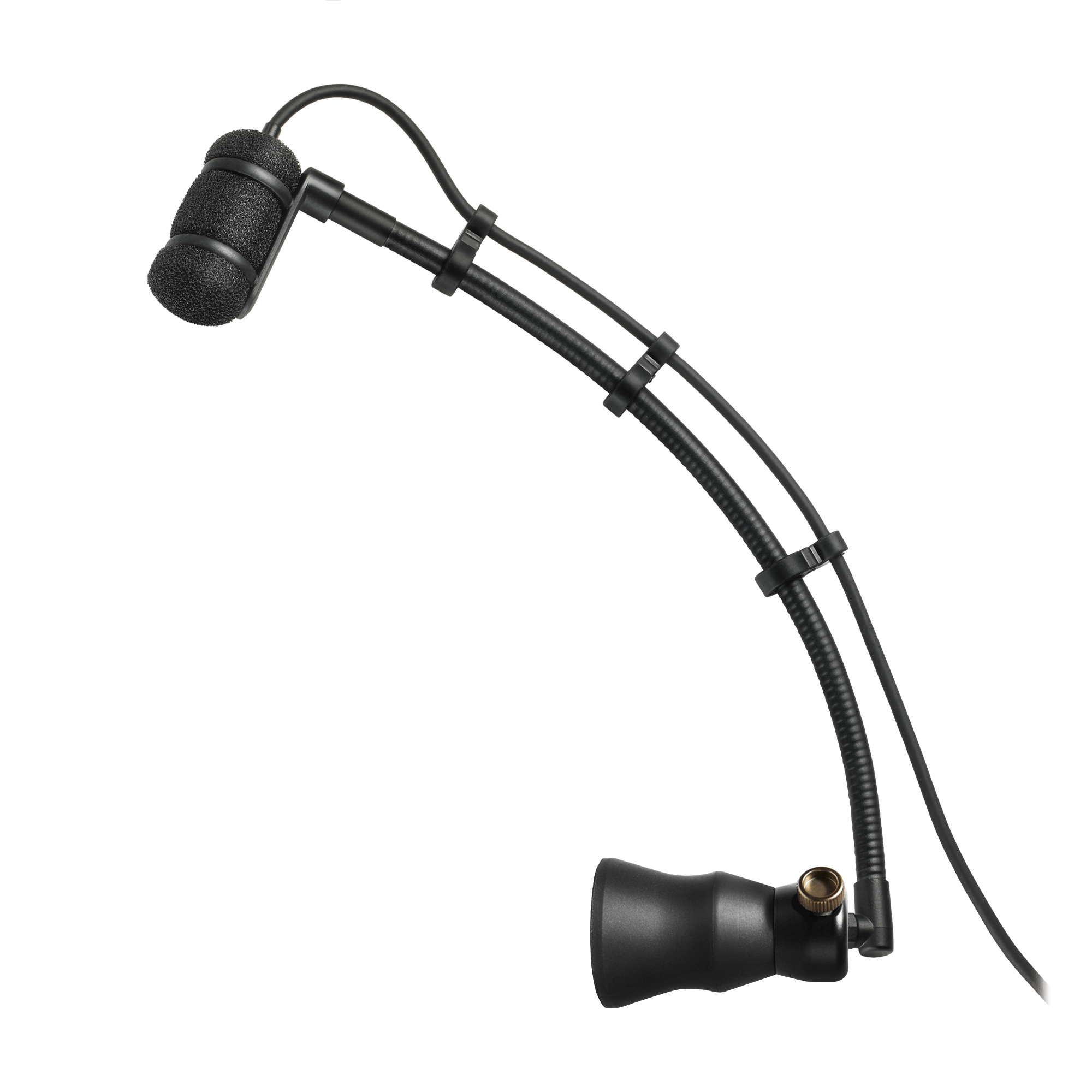

Designed for use with pianos, the ATM350PL UniMount® mounting system gives you the tools to perform with confidence. The system features the ATM350a cardioid condenser microphone, a high-SPL mic that provides a clear, well-balanced response from any instrument.
When teamed with the included AT8491P magnetic piano mount and strong, flexible AT8490L 9" gooseneck, the mic can be securely fastened to any metal portion of the piano and positioned to stay where you want it. The microphone’s cardioid polar pattern isolates the instrument by reducing side and rear pickup, and the switchable 80 Hz high-pass filter on the in-line power module helps control undesired low-frequency noise. The system also includes an AT8468 violin mount with hook-and-loop fastener and a protective carrying case.
Element: Fixed-charge back plate, permanently polarized condenser
Polar Pattern: Cardioid
Frequency Response: 40 – 20,000 Hz
Low Frequency Roll Off: 80 Hz, 12 dB/octave
Open Circuit Sensitivity: –49 dB (3.5 mV) re 1V at 1 Pa
Maximum Input Sound Level: 159 dB SPL, 1 kHz at 1% T.H.D.
Dynamic Range: 130 dB, 1 kHz at Max SPL
Signal-to-Noise Ratio: 65 dB, 1 kHz at 1 Pa
Phantom Power Requirements: 11– 52V DC, 3.5 mA typical
Switches: Flat, roll-off
Weight (Microphone): 14.5 g (0.5 oz)
Weight (Power Module): 90 g (3.2 oz)
Weight: Microphone:14.5 g (0.5 oz); Power Module: 90 g (3.2 oz)
Cable: 4.0 m (13.1') long (permanently attached to microphone), 3.2 mm (0.13") diameter, 2-conductor shielded cable with HIROSE HR10-type connector
Dimensions (Power Module): 92 mm (3.62") long, 18.9 mm (0.74") diameter
Dimensions (Microphone): 12.2 mm (0.48'') maximum body diameter
Output Connector (Power Module): Integral 3-pin XLRM-type
Optional Interchangeable Elements: UE-H hypercardioid (100°); UE-O omnidirectional (360°)
Accessories Included : ATM350a cardioid condenser microphone; AT8543 power module; AT8491P UniMount® magnetic piano mount; AT8490L UniMount® 9" gooseneck; AT8468 violin mount (hook-and-loop fastener); protective carrying case
Audio-Technica Case Style : M36
