This is handy. The DPA SMK4061 Stereo Microphone Kit is a complete stereo-miking system — perfect for getting excellent stereo sound, without the setup fuss. With the DPA SMK4061 Stereo Microphone Kit, you get two of DPA's omnidirectional miniature 4061 microphones plus a bunch of mounting accessories. You'll be ready to meet a wide range of miking situations — with finesse. Included in the kit are accessories for miking everything from pianos to acoustic guitar to strings to drums. Looking for miking flexibility at a great value? Choose DPA's SMK4061 Stereo Microphone Kit.
DPA SMK4061 Stereo Microphone Kit at a Glance:
Complete stereo-miking kit readies you for a range of applications
Includes DPA's Boundary Layer Mount for accurate pickup
Complete stereo-miking kit readies you for a range of applications
The SMK4061 combines two DPA 4061 omnidirectional miniature microphones, Lo-Sens, with a variety of mounting accessories. The system prepares you for effectively miking everything from acoustic guitar to strings to drums to grand pianos — all at a cost-effective value.
Includes DPA's Boundary Layer Mount for accurate pickup
One great accessory included with the DPA SMK4061 is the BLM6000 Boundary Layer Mount. It can be used in conjunction with a 4061 (or any of DPA's miniature mics) to place the mic on a reflective boundary such as a floor, wall, ceiling, piano lid etc, so you can to capture the ambient sound of the area. The sound captured from this "pressure zone" has higher sensitivity, clarity and intelligibility compared to the sound captured from the "free air" and serves as a kind of acoustical zoom. Another accessory included in the kit is the DMM0007 soft rubber holder. This allows all kinds of instruments, from acoustic guitar through grand piano to drums, to be mounted in the best-sounding position, using special non-marking adhesive discs.

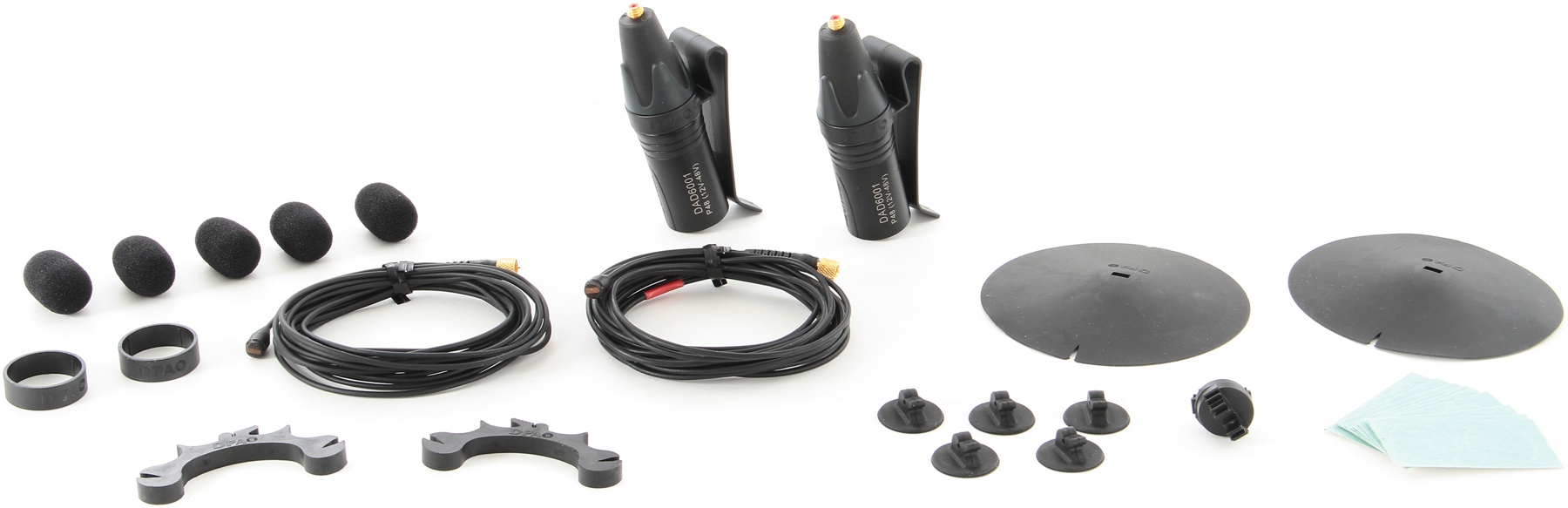

DPA SMK4061 Stereo Microphone Kit "What's In the Box:"

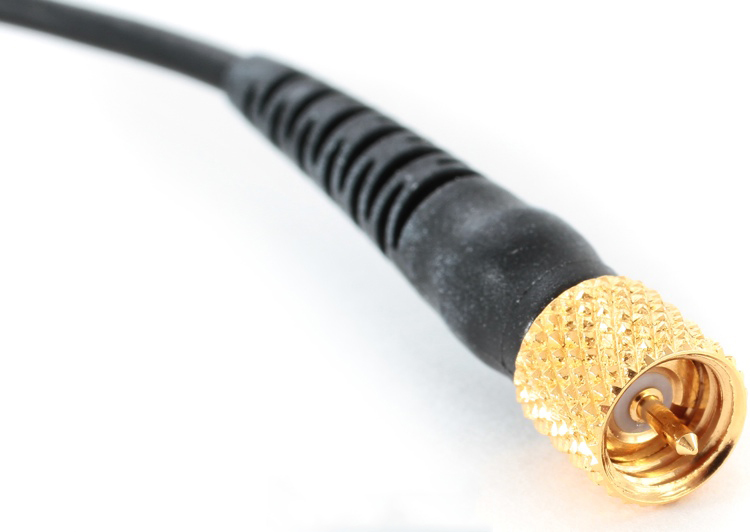

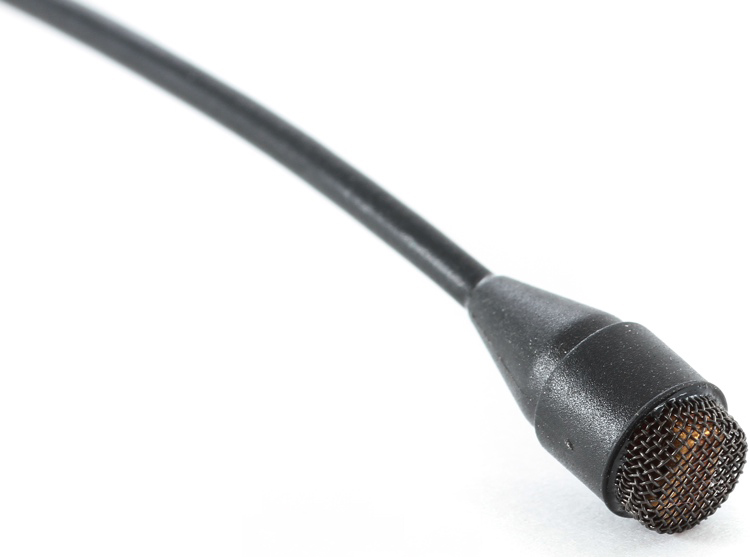

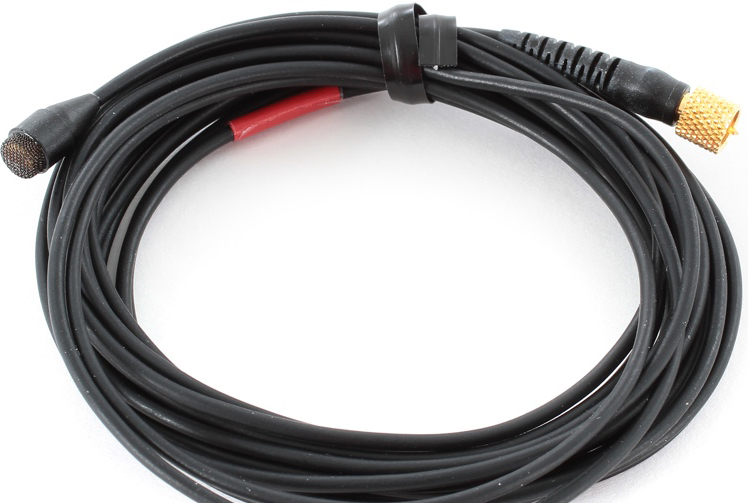

2 x 4061 Omnidirectional Mic, Lo-Sens, Black, 3m cable

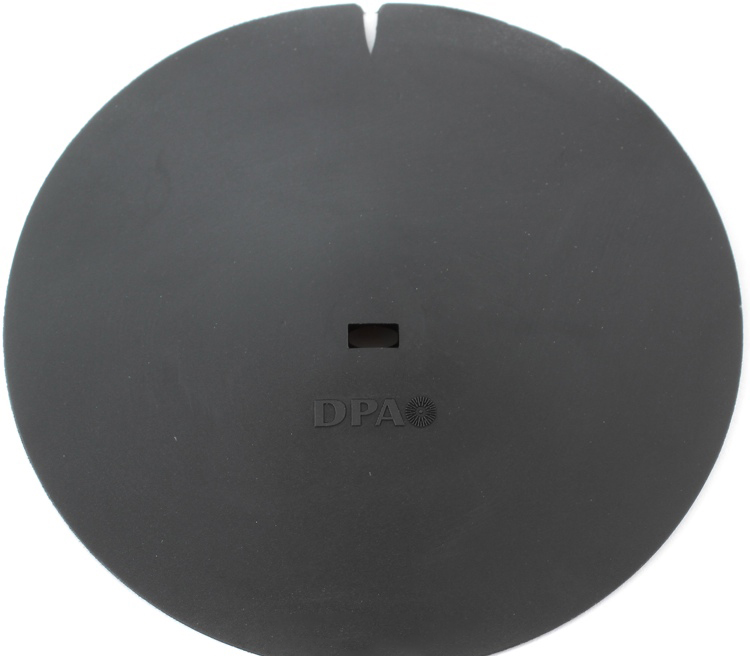

2 x BLM6000-B Boundary Layer Mount, Black

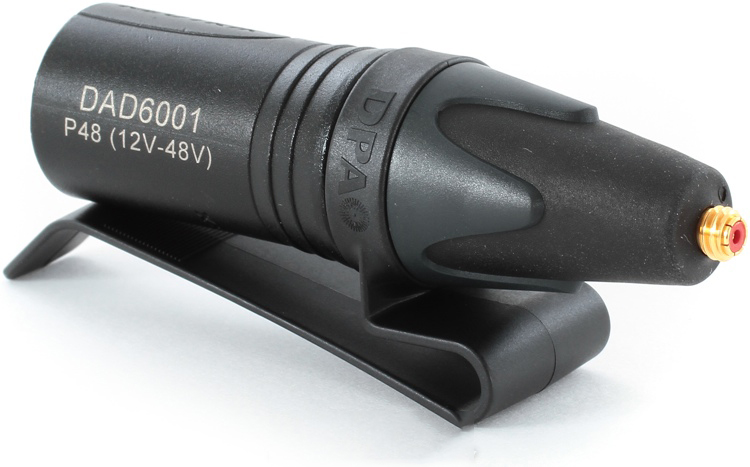

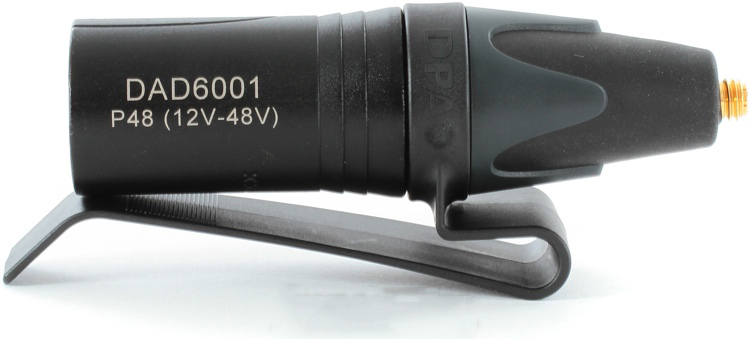

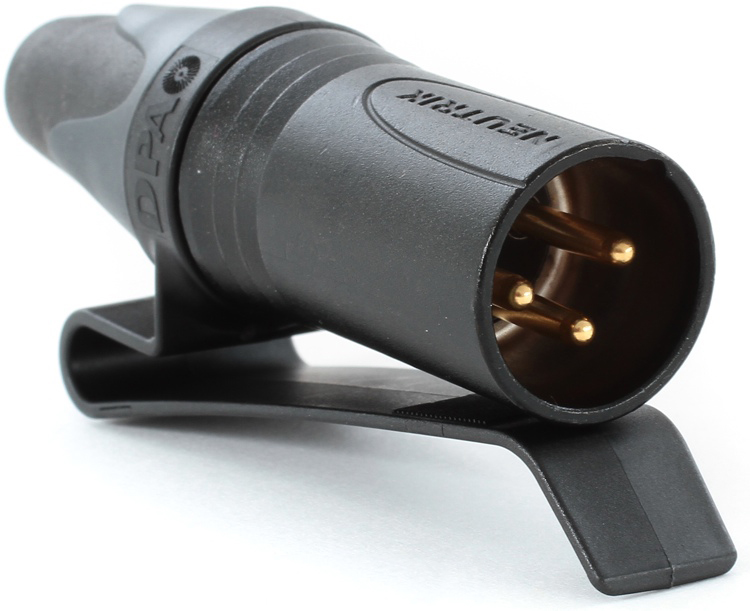

2 x DAD6001-BC MicroDot to 3-pin XLR (P48) with Belt Clip

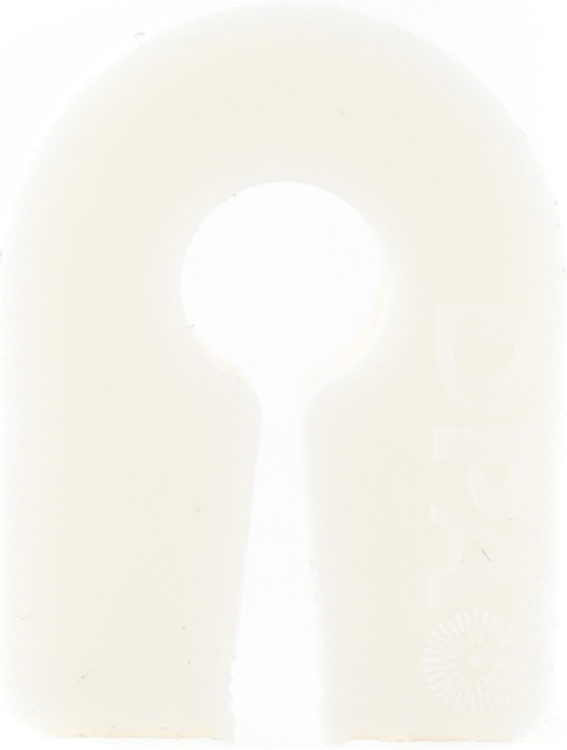

1 x DMM0007 Universal Surface Mount, 5 pcs.
2x DMM0011-B Magnet Mount, Black

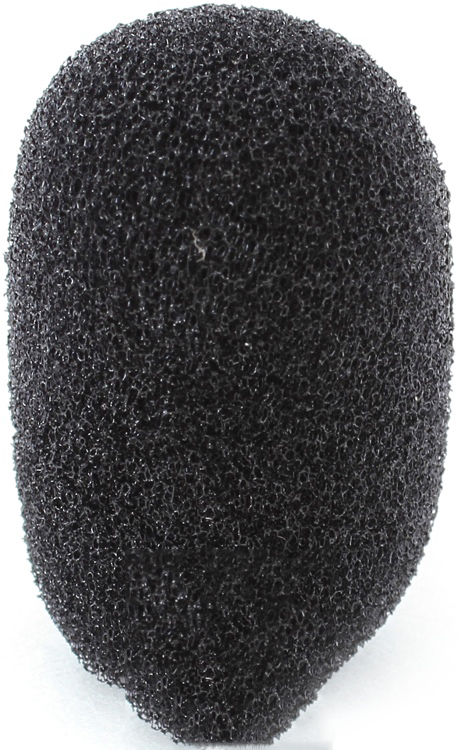

1 x DUA0560 Windscreen, Black, 5 pcs.

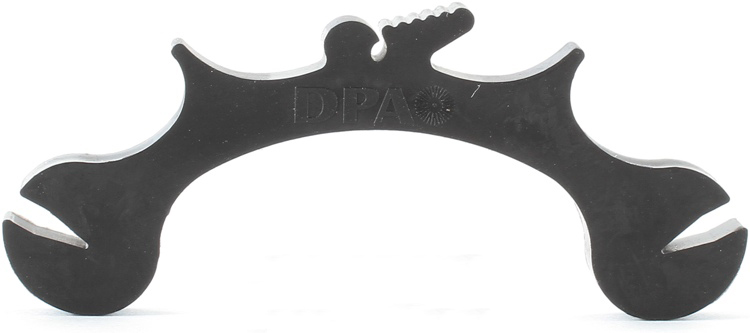

2 x MHS6001 Microphone Holder for Strings
DPA SMK4061 Stereo Microphone Kit 4061 Microphone Specifications:
Directional characteristics: Omnidirectional
Principle of operation: Pressure
Cartridge type: Pre-polarized condenser element with vertical diaphragm
Frequency range, +/- 2 dB: 20Hz — 20kHz +/-2dB, Soft boost grid: 3 dB soft boost at 8 — 20 kHz, High boost grid: 10 dB boost at 12 kHz
Sensitivity, nominal, +/- 3dB: 6 mV/Pa; -44.5 dB re. 1 V/Pa
Equivalent noise level A-weighted: Typ. 26 dB(A) re. 20 mPa (max. 28 dB(A))
Equiv. noise level ITU-R BS.468-4: Typ. 38 dB (max. 40 dB)
S/N ratio, re. 1 kHz at 1 Pa (94 dB SPL): 68 dB(A)
Total harmonic distortion (THD): <1% THD up to 123 dB SPL peak
Dynamic range: Typ. 97 dB
Max. SPL, peak before clipping: 144 dB
Output impedance: 30 — 40 Ohm
Cable drive capability: Up to 300 m (984 ft)
Power supply: Min. 5 V — max. 50 V via DPA adapter
Color: Black
Weight: .26 oz including cable and MicroDot connector
Microphone length: 0.5 in
Cable length: 6 ft
Cable: Black
Get ready for a range of stereo-miking applications with the DPA SMK4061 Stereo Microphone Kit!
Tech Specs
Microphone Type Condenser
Polar Pattern Omni
Frequency Response 20Hz-20kHz, Soft boost grid: 3dB soft boost at 8 - 20 kHz, High boost grid: 10dB boost at 12 kHz
Max SPL 144dB SPL
Output Impedance 30-40 ohms
Signal to Noise Ratio 68dB (A weighted)
Self Noise 26dB (A weighted)
Color Black
Cable Length 9.8 ft.
Connector MicroDot (XLR Adapters Included)
Weight .02 lb. (7.5g, each)
Manufacturer Part Number SMK4061
