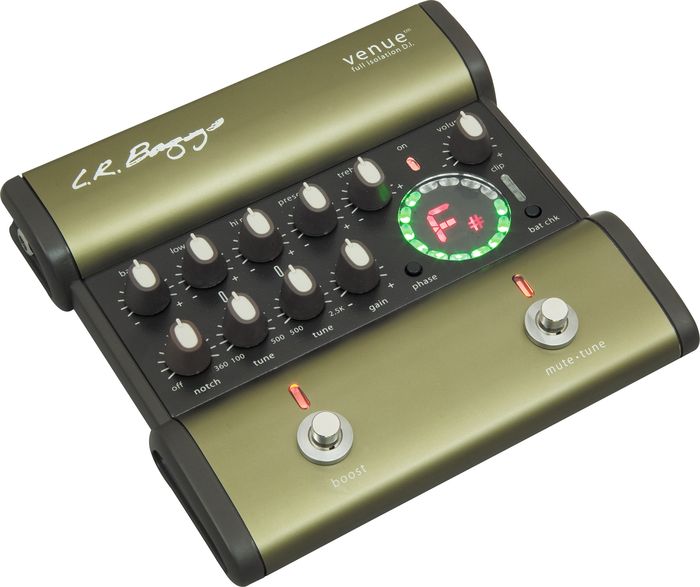

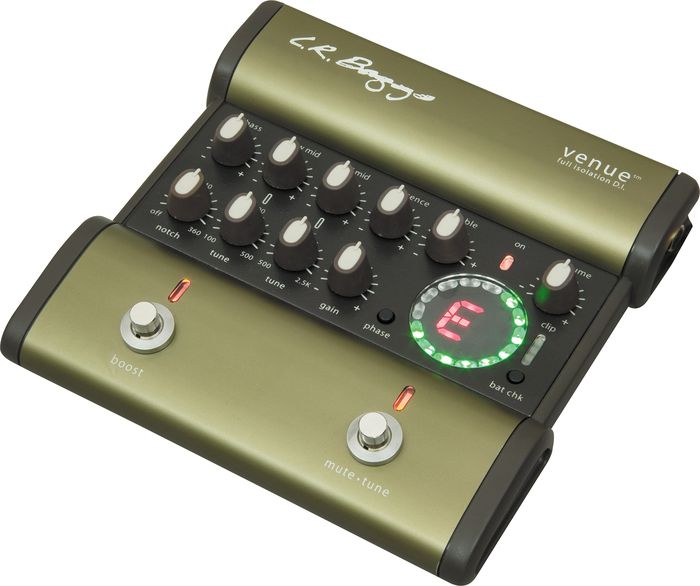

LR Baggs Venue DI Preamp

The LR Baggs Venue DI Direct Box offers a discrete acoustic guitar preamp. It combines a transformer-coupled DI output for maximum isolation, an EQ specifically tuned for acoustic guitars, a variable-boost control to complement your playing styles, and a chromatic digital tuner to help you stay in tune. Combining features from at least three stompboxes into one pro box, the LR Baggs Venue D.I. brings a new level of fidelity, confidence, and usefulness to performing acoustic musicians. The Venue D.I. is one of the most

comprehensive and best-sounding tools ever to tame the surliest stage.

1/4" input Input Impedance 10 mOhms Preamp Gain -12dB to +26dB Input Level -25dBv to +1.8dBv (.053Vrms to 1.23Vrms) EQ Notch -21dB, sweepable from 60Hz to 320Hz, 1/8 Octave Bass +/- 12dB @ 90Hz Lo Mid +/- 12dB @ 250Hz, sweepable from 100Hz to 500Hz Hi Mid +/- 12dB @ 1kHz, sweepable from 500Hz to 2.8kHz Presence +/- 12dB @ 3kHz Treble +/- 12dB @ 10kHz Effects Loops Send Level 0 dBv (0.707Vrms) Output impedance 600 Ohms Return level 0dBv (0.707Vrms) Maximum before clipping Input impedance 80 kOhms D.I Out Output level -1dBv (0.88Vrms) Balanced Line Out Output level -1dBv (0.88Vrms) Un-balanced Output impedance 200 Ohms

LR Baggs Venue DI Direct Box Features:

• High-end audio transformer coupled XLR for full immunity from ground loops
• 100% Discrete circuitry and EQ for sweet transparent and ultra quiet sound
• Adjustable gain to handle most passive and active inputs
• Garret Null notch filter to non-destructively handle feedback
• Full chromatic tuner with footswitch mute/tune function
• Bomber construction with metal shaft potentiometers
• Phase inversion for best sound and feedback control
• Works with 9V battery or DC adapter (not included)
• Tunable low and high mid controls
• Adjustable solo boost foot switch control
• Real VU meter to accurately set gain
• 4-segment battery status gauge
• Series effect loop

Clean up your stage and your sound with the Venue DI box.
