Peche a la mouche Daphné 10 Amplifier

The Daphné model is built in black-tainted MDF wood.

Specifications:

• Power 6 watts RMS (approximately 25 watts)
• 10" Speaker made by "Weber speakers" with ALNICO magnets
• Two inputs high and low impedances (6.35 jacks)
• Power and tone adjustements
• Input and outupt (jacks 3.5/mono)
• Point to point wired
• Weight 7,2 kg for the"Deluxe" and 7,8 kg for the "Daphné"
• Dimensions : Heigh 38.5cm / Large 33cm / Depth 14cm
• Tubes: one 6CA4 / one EL84 / one 12AX7 or 12AT7

The high and low inputs allow you to have variable sensitivity depending on the choice of microphone and of the "attack" on the instrument. The "high" level input will overdrive sooner depending on the pickup output level.

The "low" level input will withstand pickup with high level outputs and will allow strong playing on the instrument without overdriving. It is possible to use the two inputs at the same time if your instrument is equipped with two different microphones.

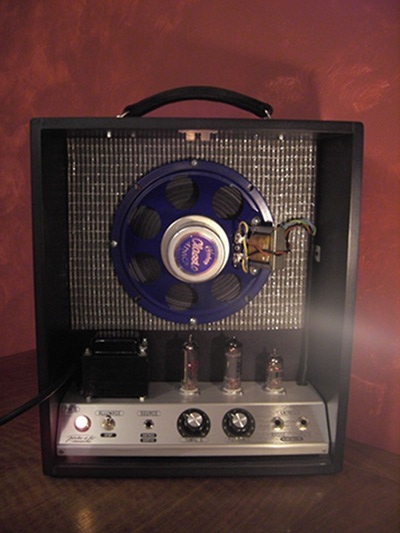

The tubes on our amps are chosen and tested for their musical qualities. You can notice on this picture from left to right :

-A voltage rectifier 6CA4 or EZ81 tube.

-A EL84 power tube.

-A pre-amplification 12AX7 or ECC83 double triode tube that can be replaced by a 12AT7 or ECC81 that has a 30% lower gain and allows therefore to delay the amplifiers saturation.

A speaker built according to our specifications, provided with an ALNICO magnet, ideal for a warm sound.

The output transformer is "old fashioned"wound.

A fuse protects the amplifier against overload and can be restarted without having to look for a spare fuse.

Includes carry bag.
