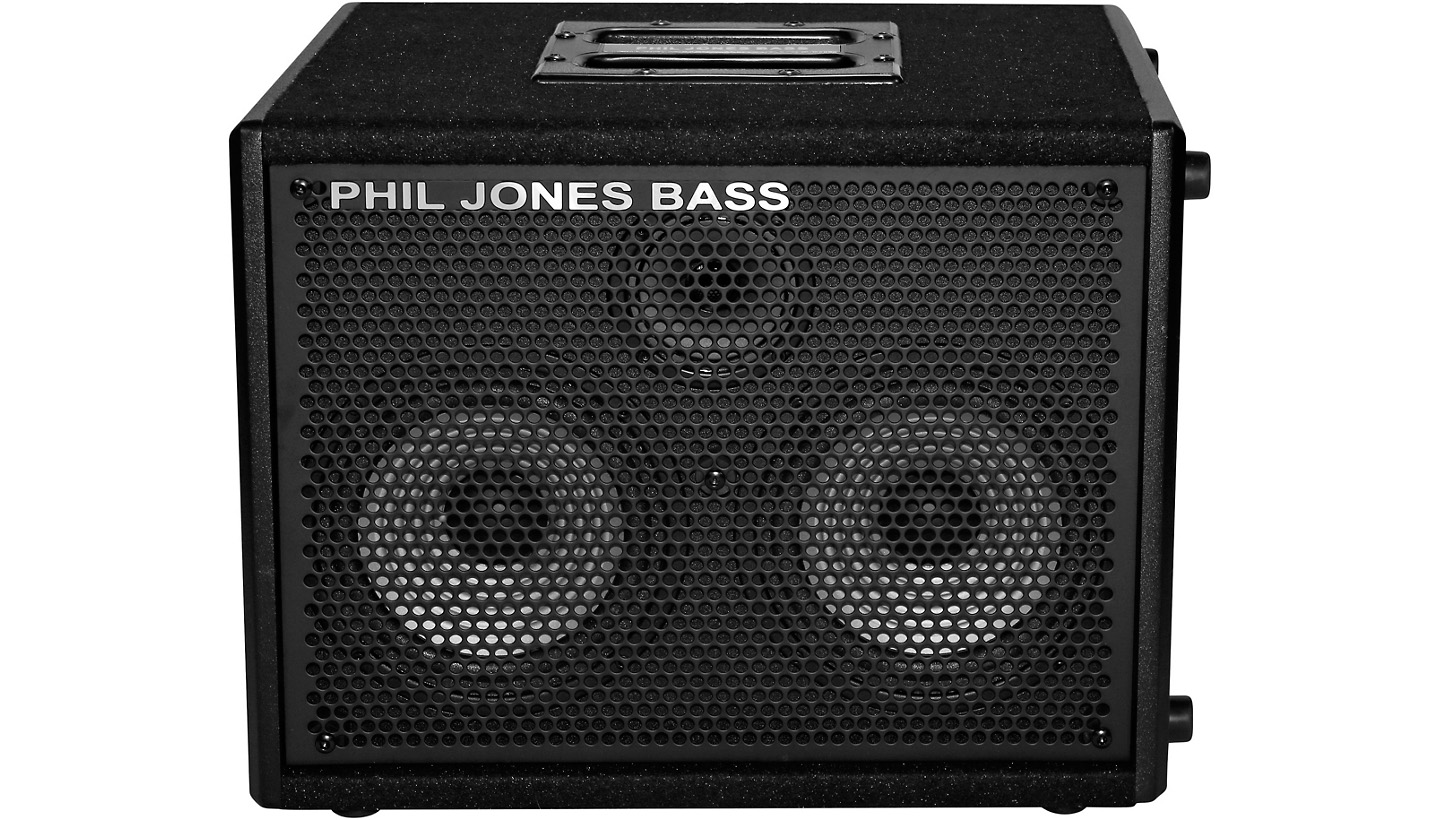

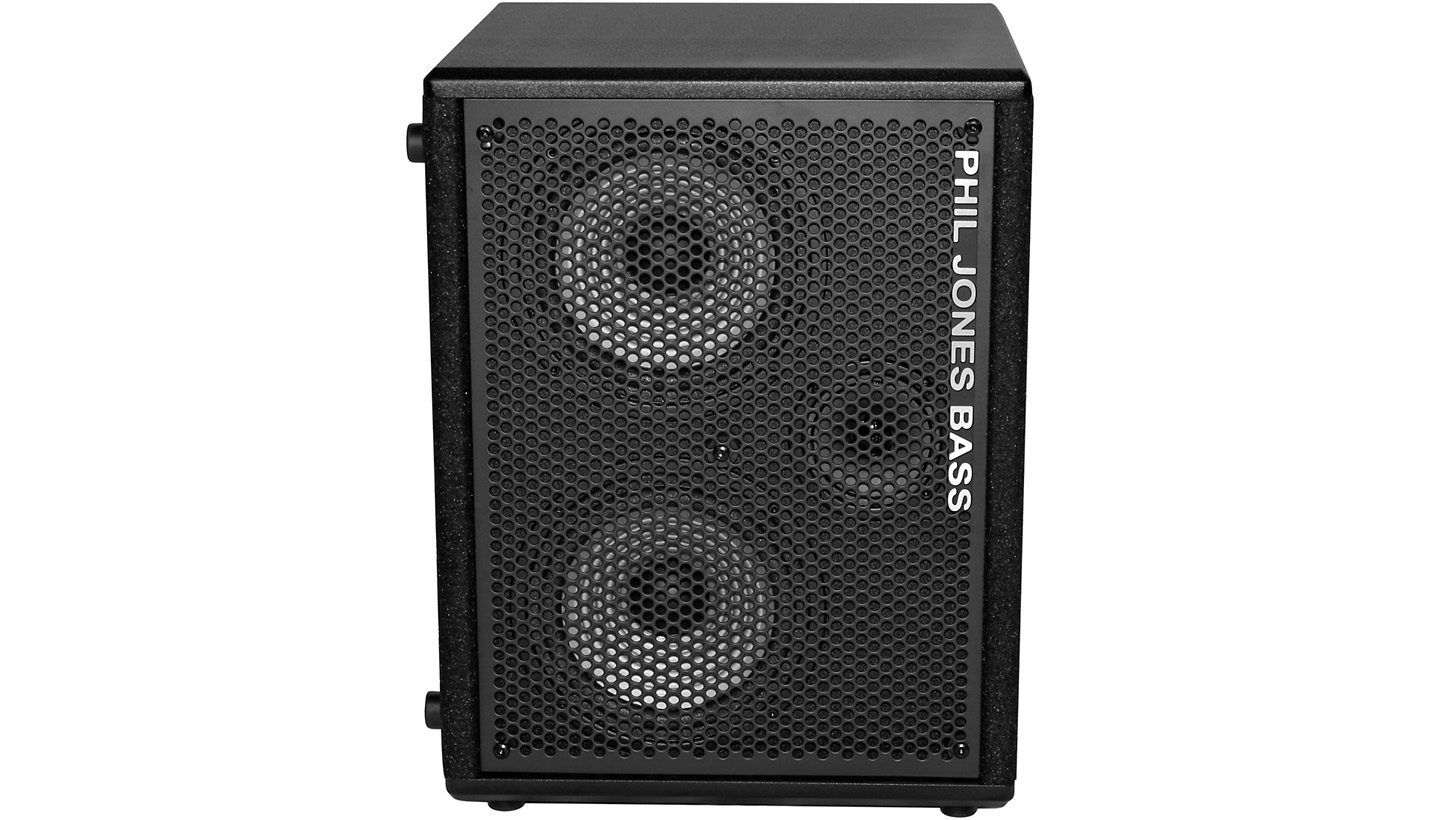

Phil Jones Bass Cab 27 Cabinet with Cover

PHIL JONES BASS

Get big bass sound and power handling from a highly portable 2x7" cab.

The Phil Jones Bass Cab 27 is a two-way, compact, high-performance bass-instrument loudspeaker.

It features two proprietary PJB 4 ohm 7-inch drivers wired in series (8 ohm total). These units are specifically designed to handle high power levels of bass frequencies with extremely low distortion. A proprietary 3 inch (magnetic liquid-cooled voice coiled) cone tweeter augments the high-frequency extension making this loudspeaker truly extended range. The magnetic liquid is situated and locked in the magnetic gap and provides cooling of the voce coil, increasing the focus of the magnetic field onto the voice coil and also provides liquid damping. The result is a tweeter that has greater dynamic range, lower distortion and smoother frequency response.

The Cab 27 tweeter crossover has minimum phase shift so the tweeter blends in seamlessly with the 2x7" speakers, making it more musical like your instrument and less like a loudspeaker.

In fact, the Cab 27’s frequency response is so smooth; it can easily double up as a vocal monitor or as a music playback speaker.

The bass drivers can move so much air that conventional vents would not work. The PJB dual vent system was designed to allow extremely high air velocities without causing distortion. Typically when vented speakers are driven to their highest acoustic output levels, considerable amounts of air move in an out through the vents and by carefully designing a hyperbolic vent aperture at both ends of the
elliptical tubes, the air flows through more smoothly, creating less air turbulence noise. The result is cleaner sounding deep bass.

The cabinet is solidly constructed with panels of plywood and medium density fiberboard. Giving the enclosure far less vibration and making it rigid and lightweight. Rigid cabinets give tighter and more accurate sounding bass. The Cab 27 is protected by heavy duty vinyl and carpet and has a “kickproof” shock mounted steel grill. A heavy duty recessed handle on top allows for easy carrying. The cabinet has 8 rubber feet to ally the cabinet to be used vertically or horizontally.
