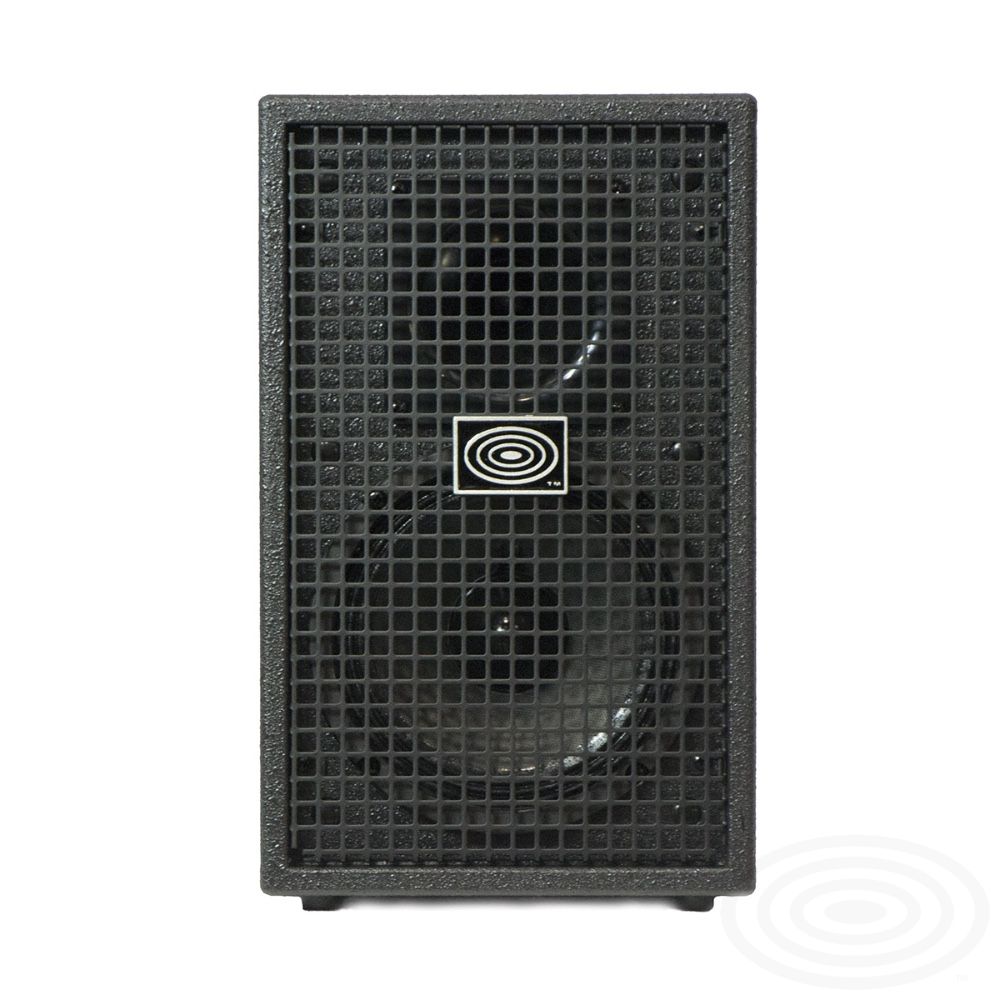

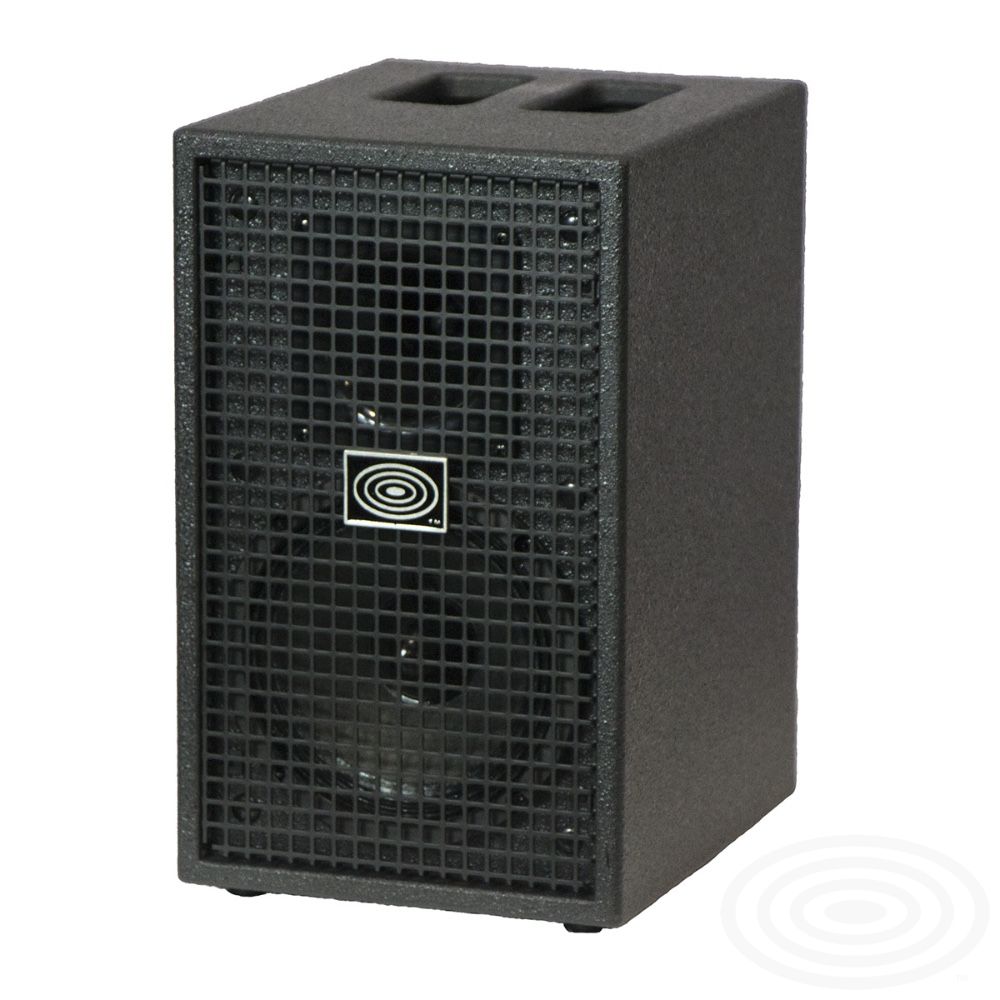

TIM SAT
Frequency response 150 Hz- 20 kHz
Sensitivity @ 1W/1m 94.0 dBSPL
SPL max (calc.) 118 dBSPL
Crossover Passive - 18dB/octave
Crossover frequency 2.3 kHz
LF Transducer 6" Woofer
Ferrite magnet circuit
Voice coil diameter 38 mm
HF Transducer Compression Driver 1" Throat
Voice coil diameter 25 mm
90°x90° (H x V) horn
Power Handling (Continuous/Peak) 125W/250W

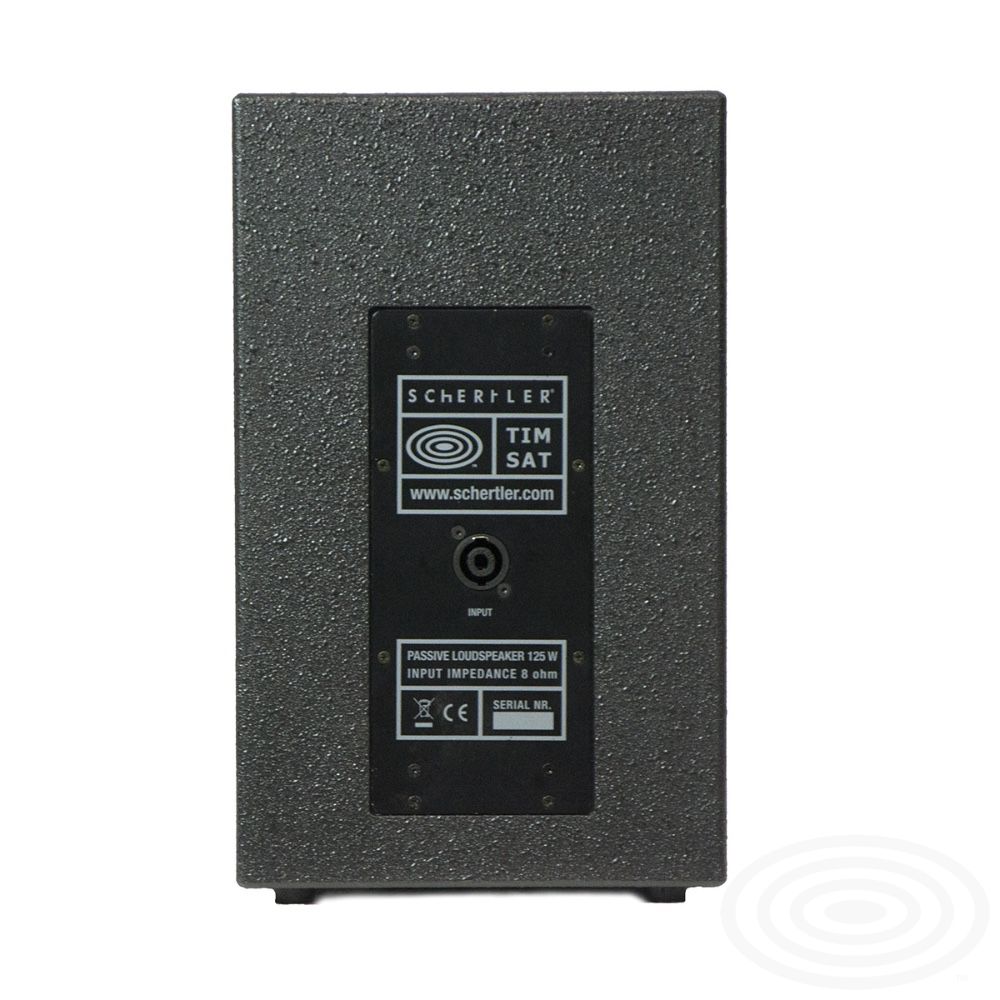

Connection Speakon Input
Nominal Impedance (Passive) 8 Ω
Controls No control
Box 12 mm Plywood
Two-way
Stand mounting Top hat composed
of welded steel tube ø 36 mm, h=77 mm
Weight kg 6
Dimensions (LxDxH) 210 x 240 x 340 mm

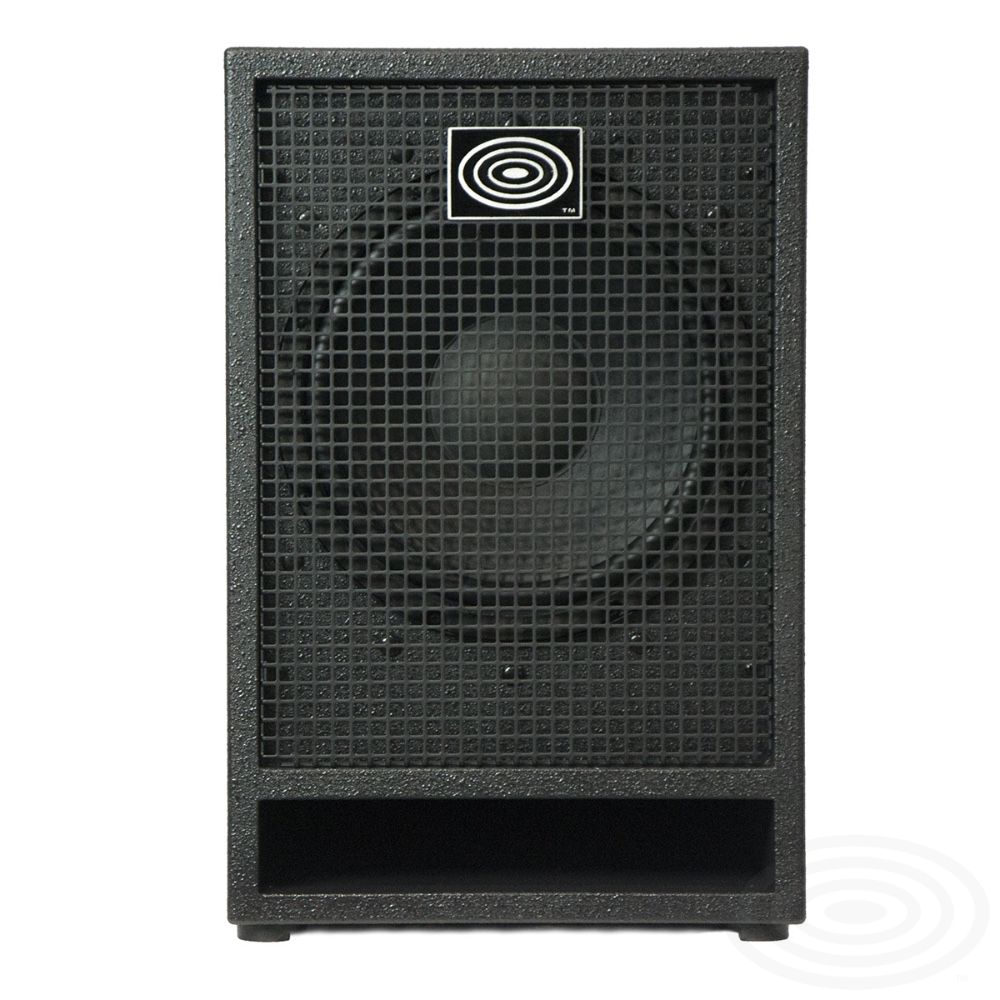

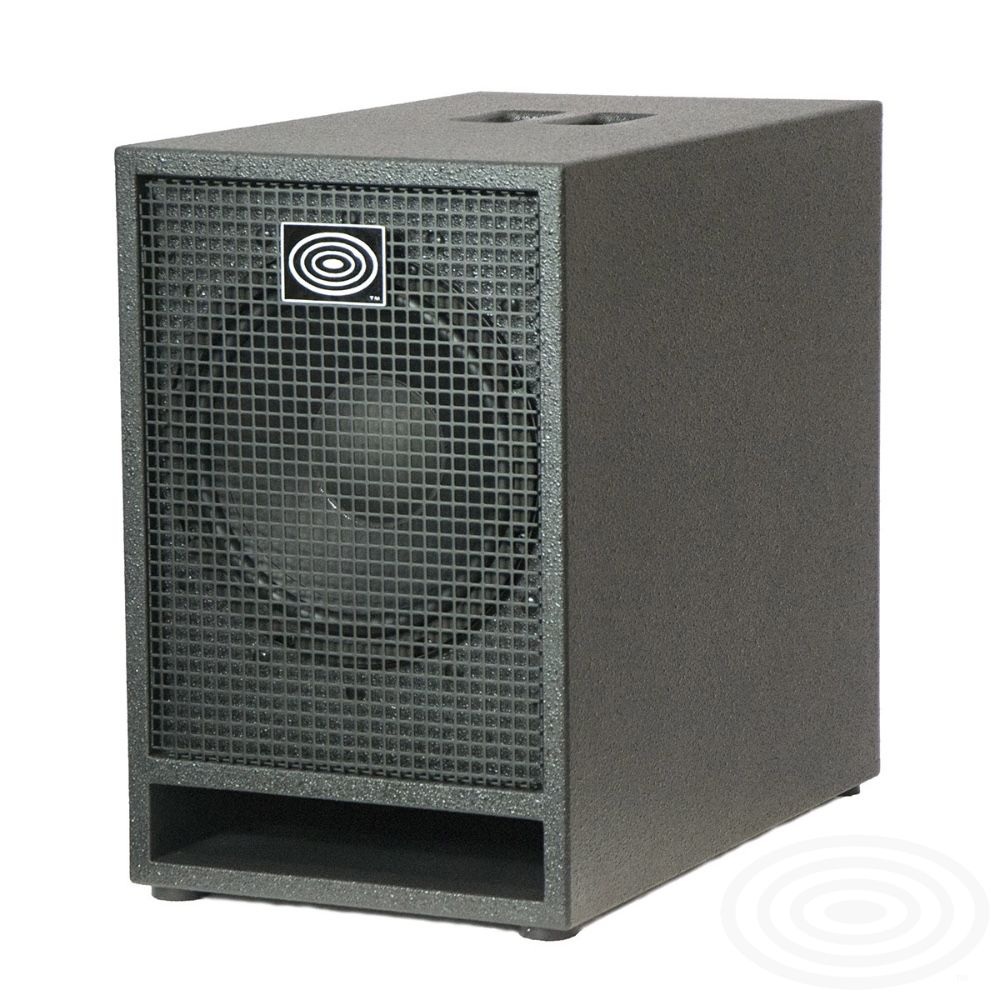

TIM SUB
Frequency response 50 Hz- 150 Hz
Sensitivity @ 1W/1m 98.0 dBSPL
SPL max (calc.) 123 dBSPL
Crossover Electronic - 24dB/octave
LF Transducer 10" Woofer
Ferrite magnet circuit
Voice coil diameter 50 mm
