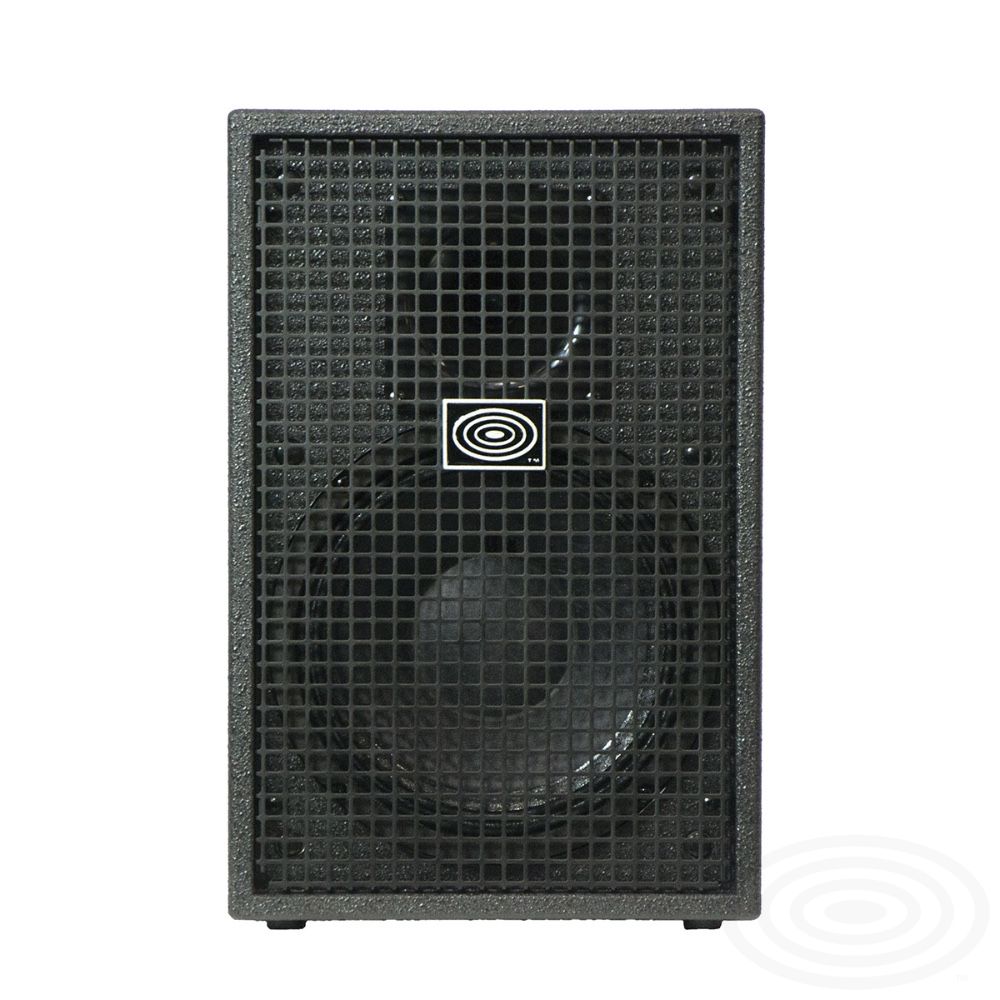

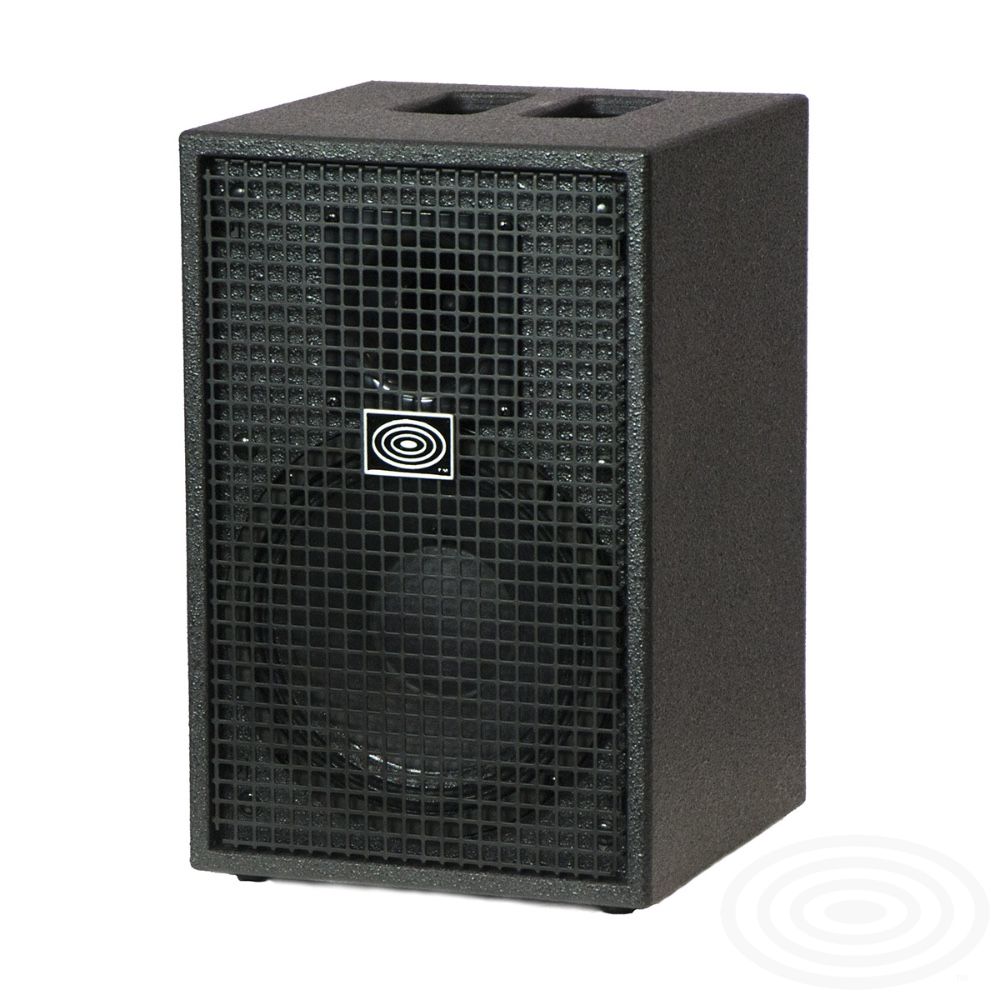

TOM SATELLITE
Frequency response 150 Hz- 20 kHz
Sensitivity @ 1W/1m 96.0 dBSPL
SPL max (calc.) 123 dBSPL
Crossover Passive - 18dB/octave
Crossover frequency 2.2 kHz
LF Transducer 8" Woofer
Ferrite magnet circuit
Voice coil diameter 65 mm
HF Transducer Compression Driver 1" Throat
Voice coil diameter 25 mm
90°x90° (H x V) horn
Power Handling (Continuous/Peak) 200W/350W

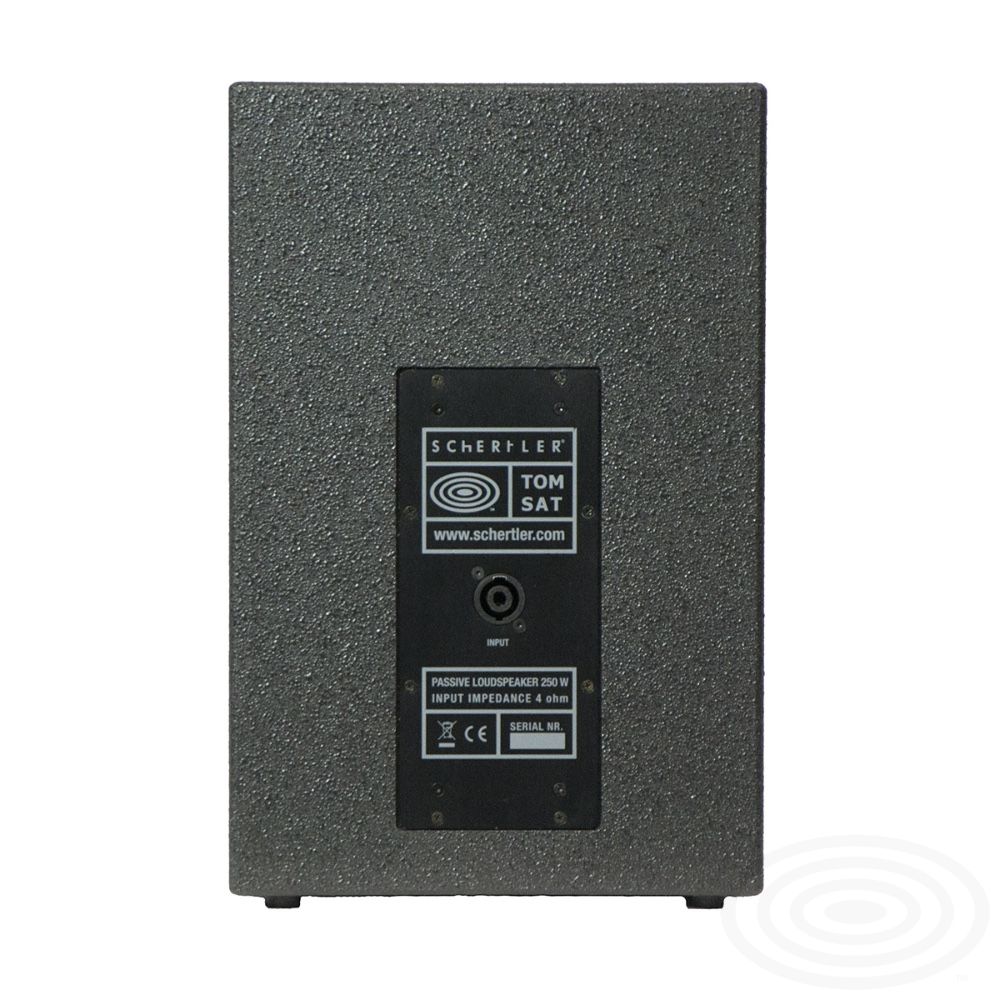

Connection Speakon Input
Nominal Impedance (Passive) 4 Ω
Controls No control
Box 12 mm Plywood
Two-way
Stand mounting Top hat composed
of welded steel tube ø 36 mm, h=77 mm
Weight kg 7
Dimensions (LxDxH) 240 x 240 x 380 mm

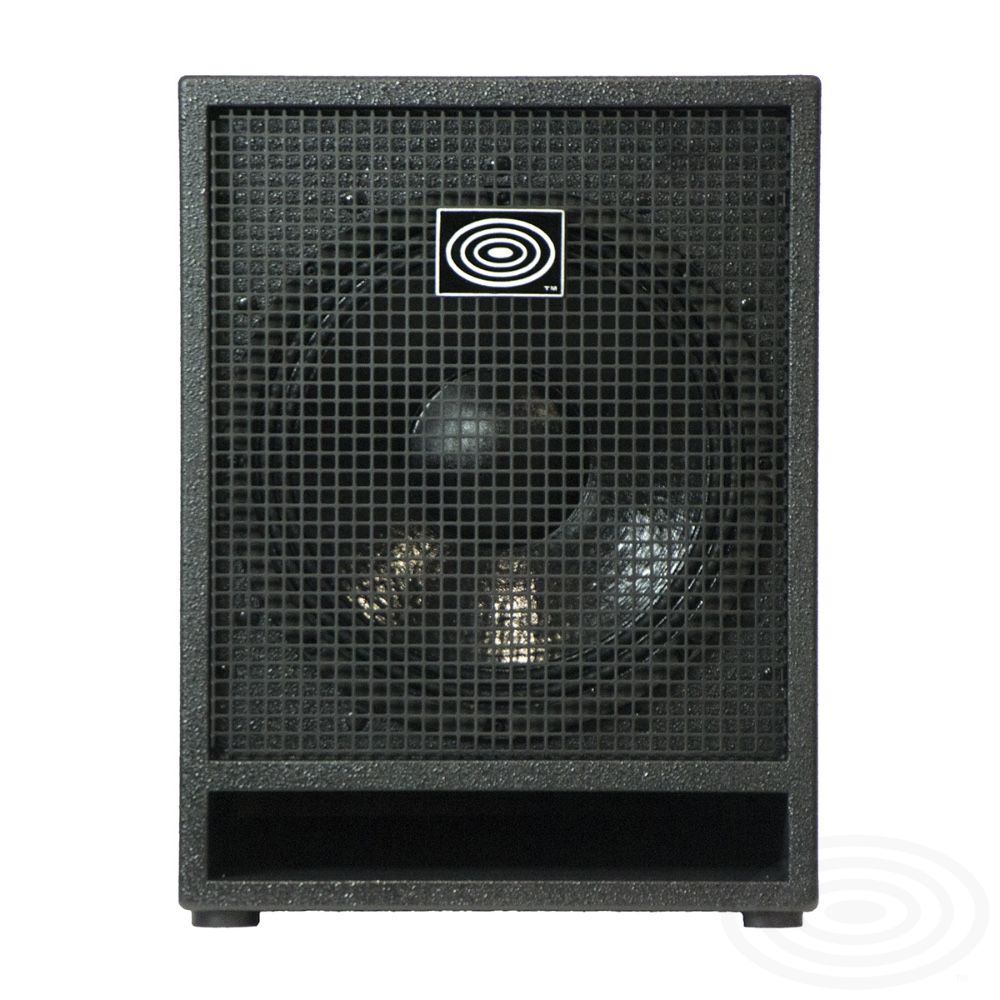

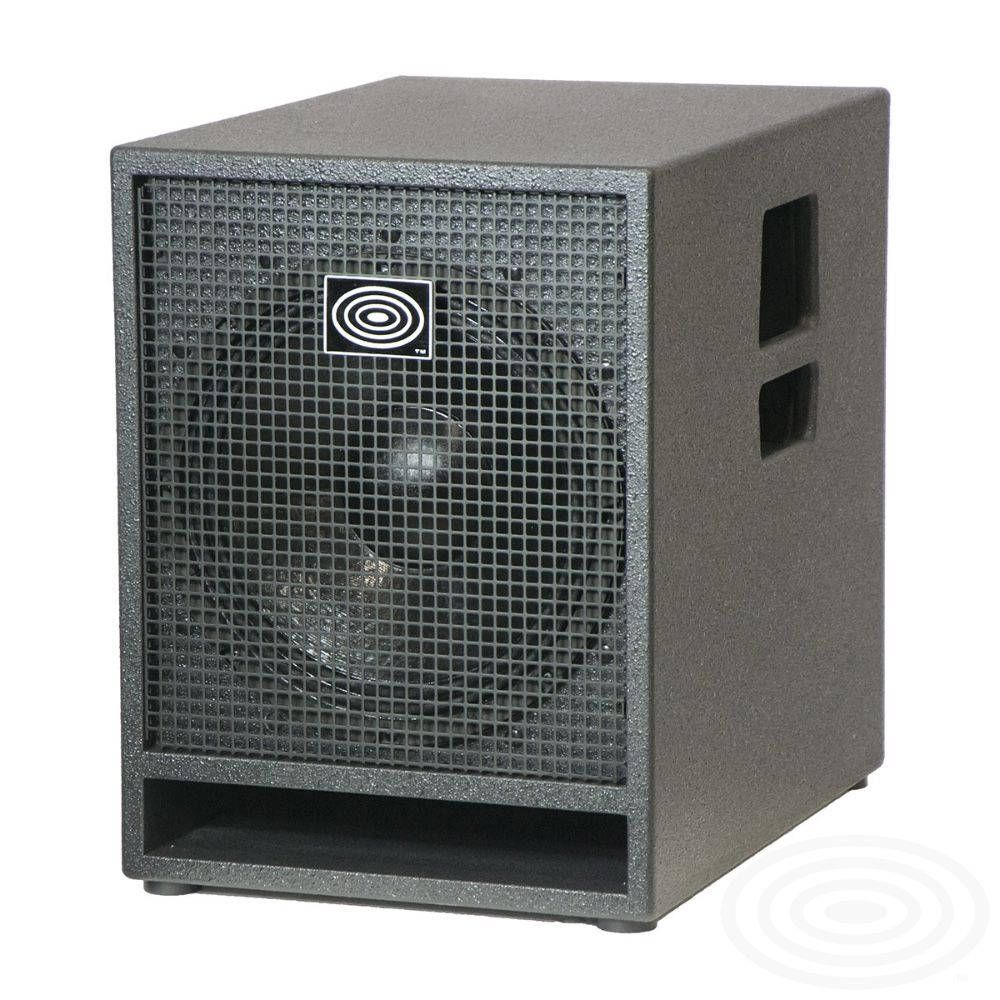

TOM SUB
Frequency response 45 Hz- 150 Hz
Sensitivity @ 1W/1m 99.0 dBSPL
SPL max (calc.) 126 dBSPL
Crossover Electronic - 24dB/octave
LF Transducer 12" Woofer
Ferrite magnet circuit
Voice coil diameter 65 mm
Power Handling (Continuous/Peak) 500W/800W
Connection XLR Input (2)
XLR Output (2)
Speakon Output (2)
Impedance 10 kΩ @ 1 kHz for XLR line
Input sensitivity XLR 0 dBu (0.775 Vrms)
in balance mode
Controls Volume, Ground Lift Switch, mono/stereo
Box 18 mm Plywood
bass reflex
Stand Mounting Top hat composed
of welded steel tube ø 36 mm, h=77 mm
Weight Kg 24
Dimensions (LxDxH) 360 x 495 x 490 mm
