Features:
- Ambiance simulator (open-back cabinet effect)
- Variable Headphone or DI Output
- Custom High Performance 6.5" Speaker
- Ext. Speaker Output (8 ohms min.)
- Auxiliary Input on 1/8" Stereo Jack
- 115V/230 Voltage switch
System Design:
- 200W Class A/B Power Amp
- Ultra-low latency circuit
- Pure analog front-end, with diode overdrive capability
- Proprietary dynamic tone shaping
- Vintage modeled tone stack
- Class A/B output stage with unregulated linear supply
- Sealed-box speaker tuning
Specifications:
Dimensions: 7.5" x 9.8" x
4.4"/192mm x 250mm x 112mm
Weight: 9.5 lbs./4.3kg
Peak Output: 120 dB at 1
meter

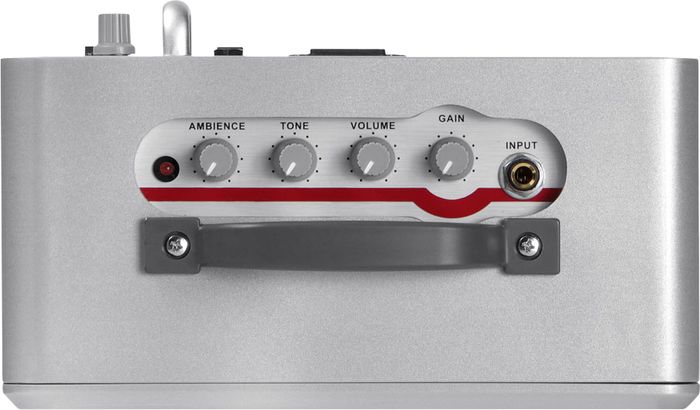

Controls: Volume, Gain, Tone,
Ambiance, Line Out/Headphone Level
ZT Lunchbox
Manual
Advanced
Users Guide
Lunchbox
White Paper
